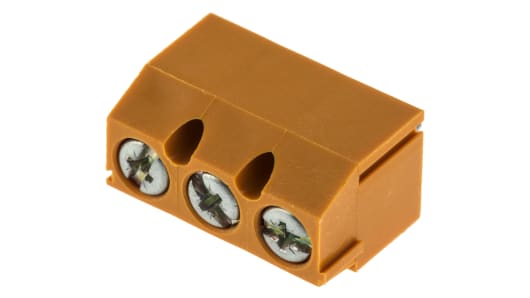

weidmuller PM 5.08/03/90 3.5SN OR BX - 1760500000 PM 5.08 3-pin PCB Terminal Strip, 5.08mm Pitch, Rows, Screw Termination
weidmuller PM 5.08/03/90 3.5SN OR BX - 1760500000 PM 5.08 3-pin PCB Terminal Strip, 5.08mm Pitch, Rows, Screw Termination Product Description Weidmuller OMNIMATE PM Series 5.08mm PCB Terminal Blocks OMNIMATE PM Series PCB terminal blocks with a 5.08mm pitch and side interlocking. These OMNIMATE 5.08mm PCB terminal block connectors have...
weidmuller PM 5.08/03/90 3.5SN OR BX - 1760500000 PM 5.08 3-pin PCB Terminal Strip, 5.08mm Pitch, Rows, Screw Termination
Product Description
Weidmuller OMNIMATE PM Series 5.08mm PCB Terminal Blocks
OMNIMATE PM Series PCB terminal blocks with a 5.08mm pitch and side interlocking. These OMNIMATE 5.08mm PCB terminal block connectors have an M2.5 leaf spring screw clamp connection which accepts a wire size range of 26 to 14 AWG and a black UL 94 V-0 Wemid (PA) insulator.
Approvals
VDE; UL; CSA
Weidmuller OMNIMATE 5.08mm PCB Terminal Blocks
Specifications
Product Description
OMNIMATE PM Series PCB terminal blocks with a 5.08mm pitch and side interlocking. These OMNIMATE 5.08mm PCB terminal block connectors have an M2.5 leaf spring screw clamp connection which accepts a wire size range of 26 to 14 AWG and a black UL 94 V-0 Wemid (PA) insulator.
VDE; UL; CSA
Weidmuller OMNIMATE 5.08mm PCB Terminal Blocks
Specifications
| Attribute | Value |
| Number of Contacts | 3 |
| Pitch | 5.08mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Male |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 24A |
| Body Orientation | Straight |
| Colour | Orange |
| Voltage Rating | 600 V |
| Series | PM 5.08 |
| Width | 8mm |
| Depth | 10mm |
| Length | 16.24mm |
| Material | Nylon |
