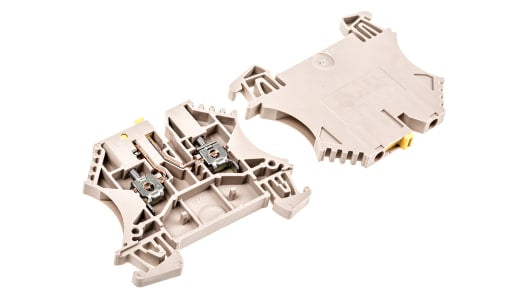

weidmuller 1855610000 Dark Beige WTR Test Disconnect Terminal Block, Single level, 2.5mm², 500 V
weidmuller 1855610000 Dark Beige WTR Test Disconnect Terminal Block, Single level, 2.5mm², 500 V Product Description Isolating The disconnect lever can be opened using a screwdriver even when test plugs are fitted. This test lever may be removed to prevent unauthorised reconnection.,Use End Cover 425-291 Note The voltage and current...
weidmuller 1855610000 Dark Beige WTR Test Disconnect Terminal Block, Single level, 2.5mm², 500 V
Product Description
Isolating
The disconnect lever can be opened using a screwdriver even when test plugs are fitted. This test lever may be removed to prevent unauthorised reconnection.,Use End Cover 425-291
Note
The voltage and current ratings on this page are to VDE ratings.
Warning
Isolating terminals must only be used for isolating sections of a circuit for test purposes. They must never be used to switch devices on or off when power is applied.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Disconnect Terminal Block, 6kV Rated Impulse Withstand Voltage, Screw Connection - WTR Series - 1855610000
Looking for a safe way to test your devices without cutting power to your system? Choose this disconnect terminal block from Weidmuller. It allows you to safely disconnect your circuit's components for testing without disturbing the electrical network itself, reducing the risk of arcing and fire outbreaks. Its Wemid housing offers reliable resistance to heat and impact, making it suitable for use in harsh environments. You can also install a fuse and fuse holder on this device for extra protection from short circuits.
Features & Benefits
• Broad operating temperature range between -50°C and +120°C for use in demanding conditions
• Voltage rating of 500V for use in low-voltage applications
• Screw termination method is simple and eliminates the need for complex tools
• Compact dimensions of 60 (H) x 5.1 (W) x 48mm (D) for use in setups with limited space
Applications
• Process and packaging equipment
• Telecommunications
• Alarm systems
Is this terminal block flame-retardant?
Yes. This terminal block stops burning in 10 seconds or less in the event of a fire, helping to promote workplace safety.
Approvals
UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
The disconnect lever can be opened using a screwdriver even when test plugs are fitted. This test lever may be removed to prevent unauthorised reconnection.,Use End Cover 425-291
The voltage and current ratings on this page are to VDE ratings.
Isolating terminals must only be used for isolating sections of a circuit for test purposes. They must never be used to switch devices on or off when power is applied.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Looking for a safe way to test your devices without cutting power to your system? Choose this disconnect terminal block from Weidmuller. It allows you to safely disconnect your circuit's components for testing without disturbing the electrical network itself, reducing the risk of arcing and fire outbreaks. Its Wemid housing offers reliable resistance to heat and impact, making it suitable for use in harsh environments. You can also install a fuse and fuse holder on this device for extra protection from short circuits.
• Broad operating temperature range between -50°C and +120°C for use in demanding conditions
• Voltage rating of 500V for use in low-voltage applications
• Screw termination method is simple and eliminates the need for complex tools
• Compact dimensions of 60 (H) x 5.1 (W) x 48mm (D) for use in setups with limited space
• Voltage rating of 500V for use in low-voltage applications
• Screw termination method is simple and eliminates the need for complex tools
• Compact dimensions of 60 (H) x 5.1 (W) x 48mm (D) for use in setups with limited space
• Process and packaging equipment
• Telecommunications
• Alarm systems
• Telecommunications
• Alarm systems
Yes. This terminal block stops burning in 10 seconds or less in the event of a fire, helping to promote workplace safety.
UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Dark Beige |
| Number of Levels | Single |
| Series | WTR |
| American Wire Gauge | 30 ? 12AWG |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 500 V |
