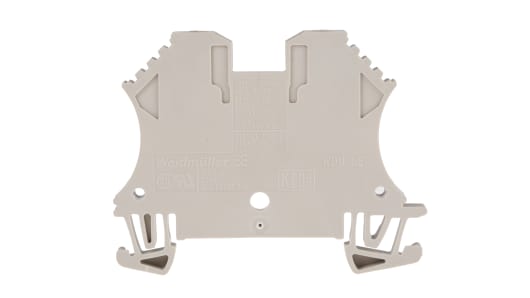

weidmuller 1020000000 Dark Beige WDU Feed Through Terminal Block, Single level, 2.5mm², 800 V
weidmuller 1020000000 Dark Beige WDU Feed Through Terminal Block, Single level, 2.5mm², 800 V Product Description ’W’ Series Terminal Blocks One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals. Features...
weidmuller 1020000000 Dark Beige WDU Feed Through Terminal Block, Single level, 2.5mm², 800 V
Product Description
’W’ Series Terminal Blocks
One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.
Features and Benefits:
Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals
Product Application Information
Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.
A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Feed-Through Terminal Block, 8kV Impulse Withstand Voltage, 24A Current Rating - WDU Series - 1020000000
Use this feed-through terminal block from Weidmuller to connect multiple conductors. It clips onto a DIN rail for easy, tool-free installation. The Wemid material is resistant to heat and impact for durability in harsh environments. Thanks to its current rating of 24A, it's a good choice for use in high-power systems. Its narrow dimensions of 60 (H) x 5.1 (W) x 46.5mm (D) mean this terminal block allows you to maximise space in your setup.
Features & Benefits
• Flame-retardant housing for safety in the event of a fire
• Wide operating temperature range between -60°C and +130°C for use in demanding environments
• Screw connections for simple and secure wiring
• Low power loss of 0.77W for maximum efficiency
• Light weight of 7g to place minimal strain on your equipment
Applications
• Industrial power systems
• Lighting controllers
• Civil electrical installations
What size wires can I use with this terminal block?
For versatility, you can use conductors ranging in size between 30 and 12AWG for factory wiring and between 28 and 12AWG for field wiring.
Approvals
1-10
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.
Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals
Screw-in and a plug-in cross connection system is available for screw terminals
Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.
A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Use this feed-through terminal block from Weidmuller to connect multiple conductors. It clips onto a DIN rail for easy, tool-free installation. The Wemid material is resistant to heat and impact for durability in harsh environments. Thanks to its current rating of 24A, it's a good choice for use in high-power systems. Its narrow dimensions of 60 (H) x 5.1 (W) x 46.5mm (D) mean this terminal block allows you to maximise space in your setup.
• Flame-retardant housing for safety in the event of a fire
• Wide operating temperature range between -60°C and +130°C for use in demanding environments
• Screw connections for simple and secure wiring
• Low power loss of 0.77W for maximum efficiency
• Light weight of 7g to place minimal strain on your equipment
• Wide operating temperature range between -60°C and +130°C for use in demanding environments
• Screw connections for simple and secure wiring
• Low power loss of 0.77W for maximum efficiency
• Light weight of 7g to place minimal strain on your equipment
• Industrial power systems
• Lighting controllers
• Civil electrical installations
• Lighting controllers
• Civil electrical installations
For versatility, you can use conductors ranging in size between 30 and 12AWG for factory wiring and between 28 and 12AWG for field wiring.
1-10
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Dark Beige |
| Number of Levels | Single |
| American Wire Gauge | 30 ? 12AWG |
| Series | WDU |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Voltage Rating | 800 V |
| Current Rating | 24A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
