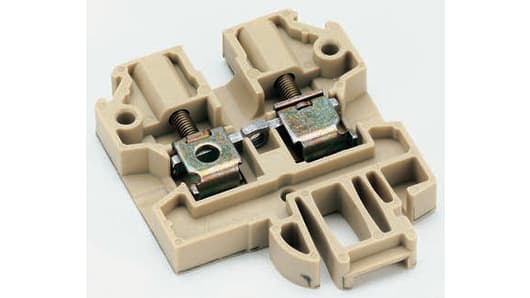

weidmuller 0110060000 Brown SAK Feed Through Terminal Block, Single level, 10mm², ATEX, 800 V
weidmuller 0110060000 Brown SAK Feed Through Terminal Block, Single level, 10mm², ATEX, 800 V Product Description Standard Terminals, End Covers, and Jumper Bars Standard or feed through rated at 750V . Terminals of the same type may be cross connected using the pre-assembled jumper bars for up to 10 poles...
weidmuller 0110060000 Brown SAK Feed Through Terminal Block, Single level, 10mm², ATEX, 800 V
Product Description
Standard Terminals, End Covers, and Jumper Bars
Standard or feed through rated at 750V . Terminals of the same type may be cross connected using the pre-assembled jumper bars for up to 10 poles (2.5mm-16mm terminals) and 2 poles (35mm terminals).,TSCH partitions fit jumper bar cut outs.
Note
TSCH small partitions fit SAK 2.5, 5, 6N, 10 and 16 standard terminals.,Stock No.s 425-639 and 425-645 do not have DEMKO Approval
Approvals
CSA certified, UL listed, NEMKO, SEV, KEMA, DEMKO
Approvals
1, 2, 4 -7
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
Standard or feed through rated at 750V . Terminals of the same type may be cross connected using the pre-assembled jumper bars for up to 10 poles (2.5mm-16mm terminals) and 2 poles (35mm terminals).,TSCH partitions fit jumper bar cut outs.
TSCH small partitions fit SAK 2.5, 5, 6N, 10 and 16 standard terminals.,Stock No.s 425-639 and 425-645 do not have DEMKO Approval
CSA certified, UL listed, NEMKO, SEV, KEMA, DEMKO
1, 2, 4 -7
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 14 ? 6AWG |
| Series | SAK |
| Termination Method | Screw |
| Cable CSA | 10mm² |
| Voltage Rating | 800 V |
| Current Rating | 57A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +100°C |
| Hazardous Area Certification | ATEX |
