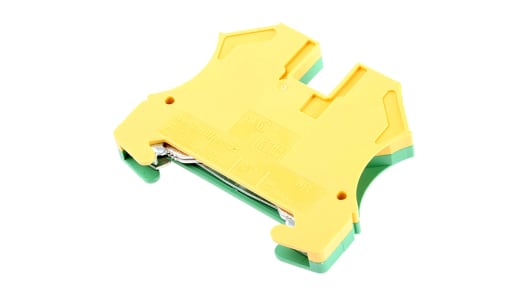

weidmuller 1010200000 Green/Yellow WPE DIN Rail Terminal Block, Single level, 0.5 ? 10mm², ATEX, 800 V
weidmuller 1010200000 Green/Yellow WPE DIN Rail Terminal Block, Single level, 0.5 ? 10mm², ATEX, 800 V Product Description Earth Terminals Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a...
weidmuller 1010200000 Green/Yellow WPE DIN Rail Terminal Block, Single level, 0.5 ? 10mm², ATEX, 800 V
Product Description
Earth Terminals
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
Benefits
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
Typical Applications
Designed to give you the best conductivity in applications such as control panels and rails.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller DIN Rail Terminal Block, Wemid Housing, 8kV Rated Impulse Withstand Voltage - WPE Series - 1010200000
Protect your equipment from electrical and magnetic interference with this DIN rail terminal block from Weidmuller. It has a centre mounting screw that energises the rail, so it serves as a busbar to other ground terminals in the circuit. A durable Wemid housing provides reliable protection from heat and impact, which means it's suitable for use in harsh environments. Its green and yellow colour makes it easy to identify in a colour-coded setup. This product is an essential safety component that's often used in industrial control systems.
Features & Benefits
• Compact dimensions of 56 (H) x 7.9 (W) x 46.5mm (D) for use in tight setups
• DIN rail mounting for ease of installation
• Stops burning in 10 seconds or less in the event of a fire for enhanced workplace safety
Applications
• Material handling equipment
• Robotics and automation
• Oil and gas plants
What wire sizes can I connect to this terminal block?
This terminal block can accommodate wire sizes ranging from 20 to 8AWG, so it's a versatile option.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
• Protective insulation
• Screw mounted connection
Designed to give you the best conductivity in applications such as control panels and rails.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Protect your equipment from electrical and magnetic interference with this DIN rail terminal block from Weidmuller. It has a centre mounting screw that energises the rail, so it serves as a busbar to other ground terminals in the circuit. A durable Wemid housing provides reliable protection from heat and impact, which means it's suitable for use in harsh environments. Its green and yellow colour makes it easy to identify in a colour-coded setup. This product is an essential safety component that's often used in industrial control systems.
• Compact dimensions of 56 (H) x 7.9 (W) x 46.5mm (D) for use in tight setups
• DIN rail mounting for ease of installation
• Stops burning in 10 seconds or less in the event of a fire for enhanced workplace safety
• DIN rail mounting for ease of installation
• Stops burning in 10 seconds or less in the event of a fire for enhanced workplace safety
• Material handling equipment
• Robotics and automation
• Oil and gas plants
• Robotics and automation
• Oil and gas plants
This terminal block can accommodate wire sizes ranging from 20 to 8AWG, so it's a versatile option.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Green/Yellow |
| Number of Levels | Single |
| Series | WPE |
| American Wire Gauge | 20 ? 8AWG |
| Termination Method | Screw |
| Cable CSA | 0.5 ? 10mm² |
| Voltage Rating | 800 V |
| Current Rating | 720A |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX |
| Standards Met | CCC, CSA, CSAEX, DNV, EAC, Exi, ROHS, UKCA |
