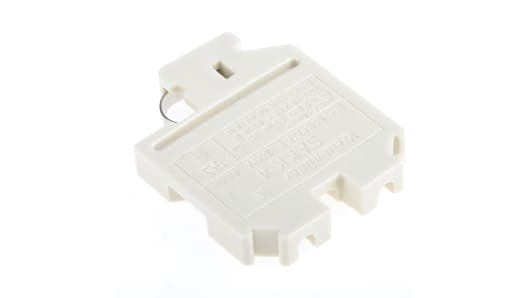

weidmuller 9502600000 Brown SAKK Modular Terminal Block, Single level, 4mm², ATEX, IECEx, 800 V
weidmuller 9502600000 Brown SAKK Modular Terminal Block, Single level, 4mm², ATEX, IECEx, 800 V Product Description SAK Series Stud Terminals Ceramic - High Temperature Glazed ceramic feed through terminals available in 2 sizes to fit the G-profile asymmetric rail to BS5825:1980, EN 50035. A maximum operating temperature of 250°C is...
weidmuller 9502600000 Brown SAKK Modular Terminal Block, Single level, 4mm², ATEX, IECEx, 800 V
Product Description
SAK Series Stud Terminals Ceramic - High Temperature
Glazed ceramic feed through terminals available in 2 sizes to fit the G-profile asymmetric rail to BS5825:1980, EN 50035. A maximum operating temperature of 250°C is achievable for continual use providing the correct end brackets are used.
Terminal Pitch 8 mm
Depth on rail 53 mm
Approvals
CSA certified, UL listed
Weidmuller Modular Terminal Block, Ceramic Body Material, Screw Connection - SAKK Series - 9502600000
Looking for a control solution for your electrical systems that can perform in the heat of the moment? Choose this modular terminal block from Weidmuller. Its ceramic housing has excellent heat resistance and can handle temperatures as high as +250°C, making it a reliable partner in demanding conditions. As it stops burning in 10 seconds or less when a fire occurs, it's a safe option for use in sensitive work areas. Thanks to its voltage rating of 800V, you can depend on this piece of kit in heavy-duty applications.
Features & Benefits
• Current rating of 32A for use in high-current applications
• Compact dimensions of 40 (H) x 8 (W) x 53mm (D) for installation in tight spaces
• Screw connections for secure wiring
• Open side panel for easy integration with other terminal blocks
Applications
• Automotive manufacturing
• Process and packaging equipment
How do I mount this terminal block?
This terminal block is designed for direct mounting onto your DIN rail. The process is simple and needs no tools, saving you time and effort.
Approvals
1, 2
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
Glazed ceramic feed through terminals available in 2 sizes to fit the G-profile asymmetric rail to BS5825:1980, EN 50035. A maximum operating temperature of 250°C is achievable for continual use providing the correct end brackets are used.
Terminal Pitch 8 mm
Depth on rail 53 mm
Depth on rail 53 mm
CSA certified, UL listed
Looking for a control solution for your electrical systems that can perform in the heat of the moment? Choose this modular terminal block from Weidmuller. Its ceramic housing has excellent heat resistance and can handle temperatures as high as +250°C, making it a reliable partner in demanding conditions. As it stops burning in 10 seconds or less when a fire occurs, it's a safe option for use in sensitive work areas. Thanks to its voltage rating of 800V, you can depend on this piece of kit in heavy-duty applications.
• Current rating of 32A for use in high-current applications
• Compact dimensions of 40 (H) x 8 (W) x 53mm (D) for installation in tight spaces
• Screw connections for secure wiring
• Open side panel for easy integration with other terminal blocks
• Compact dimensions of 40 (H) x 8 (W) x 53mm (D) for installation in tight spaces
• Screw connections for secure wiring
• Open side panel for easy integration with other terminal blocks
• Automotive manufacturing
• Process and packaging equipment
• Process and packaging equipment
This terminal block is designed for direct mounting onto your DIN rail. The process is simple and needs no tools, saving you time and effort.
1, 2
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| Series | SAKK |
| American Wire Gauge | 22 ? 10AWG |
| Termination Method | Screw |
| Cable CSA | 4mm² |
| Fused | No |
| Voltage Rating | 800 V |
| Current Rating | 41A |
| Pitch | 6.5mm |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +250°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards Met | CSA |
