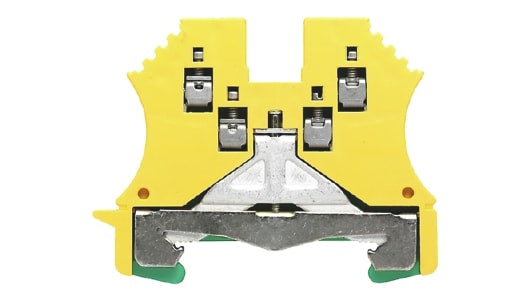

weidmuller 1016500000 Green, Yellow W DIN Rail Terminal Block, Single level, 1.5mm², 800 V
Product Description
WPE Modular PE Conductor Terminals
WPE Series PE conductor terminal blocks with clamping yoke technology.
Features and Benefits
• Screw connection
• High reliability
• Variety of designs
• Clamping yoke connection
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
WPE Series PE conductor terminal blocks with clamping yoke technology.
• Screw connection
• High reliability
• Variety of designs
• Clamping yoke connection
• High reliability
• Variety of designs
• Clamping yoke connection
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Green, Yellow |
| Number of Levels | Single |
| American Wire Gauge | 26 ? 12AWG |
| Series | W |
| Termination Method | Screw |
| Cable CSA | 1.5mm² |
| Voltage Rating | 800 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
