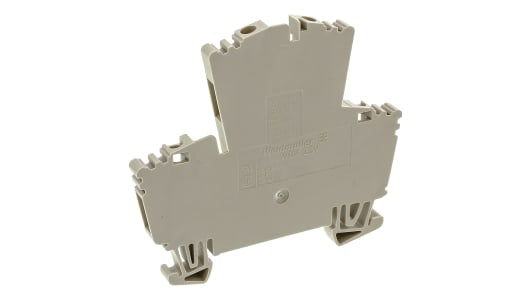

weidmuller 1022300000 Dark Beige WDK Double Level Terminal Block, Double level, 2.5mm², ATEX, IECEx, 400 V
weidmuller 1022300000 Dark Beige WDK Double Level Terminal Block, Double level, 2.5mm², ATEX, IECEx, 400 V Product Description Double Deck Terminal A 2 tier terminal, enabling higher density wiring on the rail. The WDK 2.5 is a standard feed through while the WDK 2.5V has a commoning bar connecting upper...
weidmuller 1022300000 Dark Beige WDK Double Level Terminal Block, Double level, 2.5mm², ATEX, IECEx, 400 V
Product Description
Double Deck Terminal
A 2 tier terminal, enabling higher density wiring on the rail. The WDK 2.5 is a standard feed through while the WDK 2.5V has a commoning bar connecting upper and lower tiers.
All materials comply with RoHS requirements and have been tested to current environment guidelines.
Options include
– WDK 2.5 Double Level Terminal Block
– WDK 2.5V Double Level Terminal Block
- W End Plate for Terminal Block
Features:
• Continuous operating temperature: -50 °C to 120 °C
• Material: Wemid
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Double-Level Terminal Block, Feed-Through, 24A Current Rating - WDK Series - 1022300000
When you need to join two conductors together, feed them through this double-level terminal block from Weidmuller. Thanks to its two-tiered structure, this unit has enough room to neatly house two wires, keeping your cabinet as neat as a pin. A current rating of 24A means it's always up to the task for your heavy-duty electrical systems. Its Wemid body provides effective insulation to ensure you're in safe hands when setting up your connection. Mounting this terminal block is a cinch as you'll simply need to snap it onto your DIN rail.
• Rated impulse withstand voltage of 6kV for protection against powerful surges
• Minimal power loss of 0.77W for energy efficiency
• Wide operating temperature range between -60°C and +130°C to withstand harsh industrial environments
Applications
• Electrical engineering
• Lighting fixtures
• Telecommunications
• Power stations
• Control cabinets
How do I attach my cables to this terminal block?
To attach your wires to this terminal block, strip off their outer jackets and use the built-in screw clamp to tighten them to the terminal points.
What wire sizes can I fit into this terminal block?
You can fit wires ranging in size from 30 to 12AWG into this terminal block, making it a versatile option.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
A 2 tier terminal, enabling higher density wiring on the rail. The WDK 2.5 is a standard feed through while the WDK 2.5V has a commoning bar connecting upper and lower tiers.
All materials comply with RoHS requirements and have been tested to current environment guidelines.
Options include
– WDK 2.5 Double Level Terminal Block
– WDK 2.5V Double Level Terminal Block
- W End Plate for Terminal Block
All materials comply with RoHS requirements and have been tested to current environment guidelines.
Options include
– WDK 2.5 Double Level Terminal Block
– WDK 2.5V Double Level Terminal Block
- W End Plate for Terminal Block
• Continuous operating temperature: -50 °C to 120 °C
• Material: Wemid
• Material: Wemid
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
When you need to join two conductors together, feed them through this double-level terminal block from Weidmuller. Thanks to its two-tiered structure, this unit has enough room to neatly house two wires, keeping your cabinet as neat as a pin. A current rating of 24A means it's always up to the task for your heavy-duty electrical systems. Its Wemid body provides effective insulation to ensure you're in safe hands when setting up your connection. Mounting this terminal block is a cinch as you'll simply need to snap it onto your DIN rail.
• Rated impulse withstand voltage of 6kV for protection against powerful surges
• Minimal power loss of 0.77W for energy efficiency
• Wide operating temperature range between -60°C and +130°C to withstand harsh industrial environments
• Minimal power loss of 0.77W for energy efficiency
• Wide operating temperature range between -60°C and +130°C to withstand harsh industrial environments
• Electrical engineering
• Lighting fixtures
• Telecommunications
• Power stations
• Control cabinets
• Lighting fixtures
• Telecommunications
• Power stations
• Control cabinets
To attach your wires to this terminal block, strip off their outer jackets and use the built-in screw clamp to tighten them to the terminal points.
You can fit wires ranging in size from 30 to 12AWG into this terminal block, making it a versatile option.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Dark Beige |
| Number of Levels | Double |
| Series | WDK |
| American Wire Gauge | 30 ? 12AWG |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Fused | No |
| Current Rating | 32A |
| Voltage Rating | 400 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards Met | CCC, CE, CSA, DNV, EAC, UKCA |
| Model Number | WDK 2.5V |
