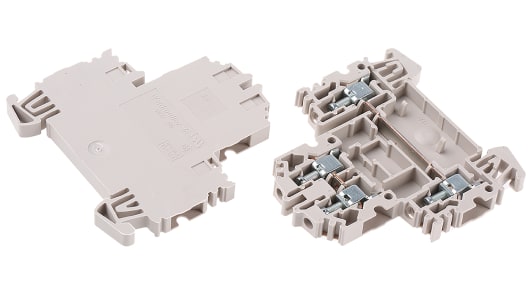

weidmuller 1041900000 Brown WDK Double Level Terminal Block, Double level, 4mm², 800 V
Product Description
Compact Double Deck
Modular two-tier terminal blocks can feed two potentials in one terminal. Both screw and plug-in version available.
Features and Benefits
• Compact length only 60 mm
• Pluggable cross connects saving time
• Flammability rating UL94V 0
Note
Upper and lower tiers are electrically charged.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Approvals
VDE
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Modular two-tier terminal blocks can feed two potentials in one terminal. Both screw and plug-in version available.
• Compact length only 60 mm
• Pluggable cross connects saving time
• Flammability rating UL94V 0
• Pluggable cross connects saving time
• Flammability rating UL94V 0
Upper and lower tiers are electrically charged.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
VDE
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Double |
| Series | WDK |
| American Wire Gauge | 26 ? 12AWG |
| Termination Method | Screw |
| Cable CSA | 4mm² |
| Voltage Rating | 800 V |
| Current Rating | 35A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
