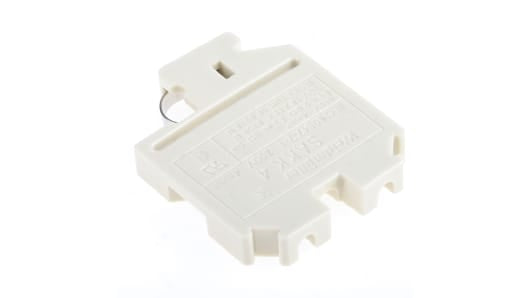

weidmuller 9502600000 Brown SAKK Modular Terminal Block, Single level, 4mm², 800 V
weidmuller 9502600000 Brown SAKK Modular Terminal Block, Single level, 4mm², 800 V Product Description SAK Series Stud Terminals Ceramic - High Temperature Glazed ceramic feed through terminals available in 2 sizes to fit the G-profile asymmetric rail to BS5825:1980, EN 50035. A maximum operating temperature of 250°C is achievable for...
weidmuller 9502600000 Brown SAKK Modular Terminal Block, Single level, 4mm², 800 V
Product Description
SAK Series Stud Terminals Ceramic - High Temperature
Glazed ceramic feed through terminals available in 2 sizes to fit the G-profile asymmetric rail to BS5825:1980, EN 50035. A maximum operating temperature of 250°C is achievable for continual use providing the correct end brackets are used.
Terminal Pitch 8 mm
Depth on rail 53 mm
Approvals
CSA certified, UL listed
Approvals
1, 2
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
Glazed ceramic feed through terminals available in 2 sizes to fit the G-profile asymmetric rail to BS5825:1980, EN 50035. A maximum operating temperature of 250°C is achievable for continual use providing the correct end brackets are used.
Terminal Pitch 8 mm
Depth on rail 53 mm
Depth on rail 53 mm
CSA certified, UL listed
1, 2
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 22 ? 10AWG |
| Series | SAKK |
| Termination Method | Screw |
| Cable CSA | 4mm² |
| Voltage Rating | 800 V |
| Current Rating | 41A |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +130°C |
