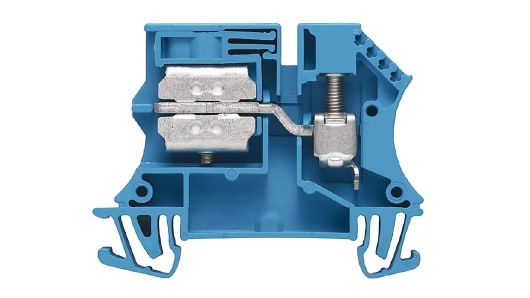

weidmuller 1010880000 Blue WNT DIN Rail Terminal Block, Single level, 6mm², 400 V
weidmuller 1010880000 Blue WNT DIN Rail Terminal Block, Single level, 6mm², 400 V Product Description Neutral Neutral conductor disconnect Terminals for use with a neutral busbar, allowing the disconnection of individual circuits from the busbar without having to remove the terminated cable. The distribution of current is limited by the...
weidmuller 1010880000 Blue WNT DIN Rail Terminal Block, Single level, 6mm², 400 V
Product Description
Neutral
Neutral conductor disconnect Terminals for use with a neutral busbar, allowing the disconnection of individual circuits from the busbar without having to remove the terminated cable. The distribution of current is limited by the size of the busbar.
Features and Benefits
Busbar connection Support plates are available and are required to hold the busbar in place, to which the neutral terminals can then be attached
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Approvals
7777
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Neutral conductor disconnect Terminals for use with a neutral busbar, allowing the disconnection of individual circuits from the busbar without having to remove the terminated cable. The distribution of current is limited by the size of the busbar.
Busbar connection Support plates are available and are required to hold the busbar in place, to which the neutral terminals can then be attached
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
7777
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Blue |
| Number of Levels | Single |
| American Wire Gauge | 26 ? 8AWG |
| Series | WNT |
| Termination Method | Busbar |
| Cable CSA | 6mm² |
| Current Rating | 57A |
| Voltage Rating | 400 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
