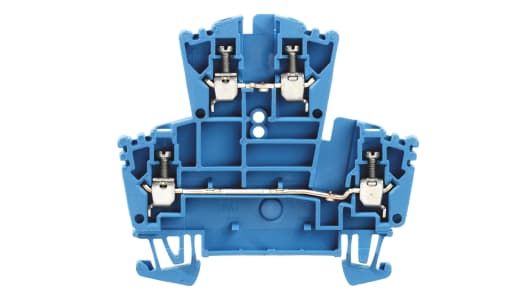

weidmuller 1021580000 Blue W Double Level Terminal Block, Double level, 2.5mm², 400 V
weidmuller 1021580000 Blue W Double Level Terminal Block, Double level, 2.5mm², 400 V Product Description WDK Double Tier Terminal Block W Series feed-through terminal blocks with clamping yoke technology. The design and features of the terminal blocks make planning easier and optimises operational safety. Features and Benefits • Double-tier• Screw...
weidmuller 1021580000 Blue W Double Level Terminal Block, Double level, 2.5mm², 400 V
Product Description
WDK Double Tier Terminal Block
W Series feed-through terminal blocks with clamping yoke technology. The design and features of the terminal blocks make planning easier and optimises operational safety.
Features and Benefits
• Double-tier
• Screw connection
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
W Series feed-through terminal blocks with clamping yoke technology. The design and features of the terminal blocks make planning easier and optimises operational safety.
• Double-tier
• Screw connection
• Snap-on mounting
• Screw connection
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Blue |
| Number of Levels | Double |
| Series | W |
| American Wire Gauge | 30 ? 12AWG |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 400 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
