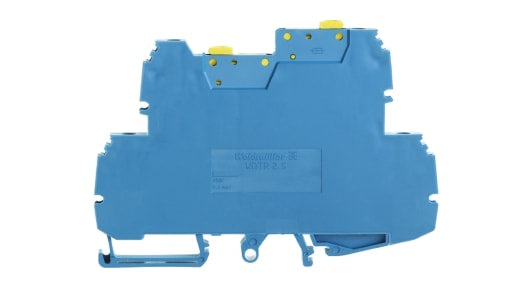

weidmuller 9528080000 Blue W Disconnect Terminal Block, Double level, 2.5mm², 400 V
Product Description
WDT/WDTR Test Disconnect Terminal Blocks
WDT/WDTR Series test-disconnect terminals with clamping yoke technology. The terminals are ideal in various applications due to their hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity.
Features and Benefits
• Easy planning and optimised operational safety
• Screw connection
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
WDT/WDTR Series test-disconnect terminals with clamping yoke technology. The terminals are ideal in various applications due to their hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity.
• Easy planning and optimised operational safety
• Screw connection
• Snap-on mounting
• Screw connection
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Blue |
| Number of Levels | Double |
| Series | W |
| American Wire Gauge | 30 ? 12AWG |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Current Rating | 14A |
| Voltage Rating | 400 V |
| Pitch | 6.2mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
