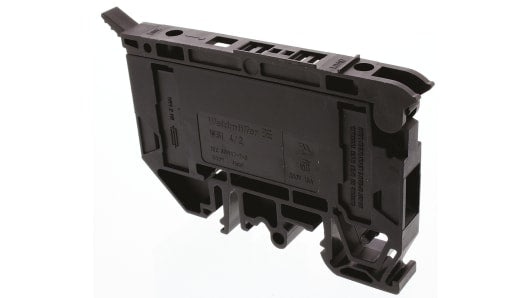

weidmuller 1880430000 Black W Fused DIN Rail Terminal, Single level, 4mm², 300 V
weidmuller 1880430000 Black W Fused DIN Rail Terminal, Single level, 4mm², 300 V Product Description Fused Terminals The Weidmuller ’W’ series fused terminals with standard screw clamp technology gives you short circuit and overload protection. Note The voltage and current ratings are to VDE ratings.For stock number you will need...
weidmuller 1880430000 Black W Fused DIN Rail Terminal, Single level, 4mm², 300 V
Product Description
Fused Terminals
The Weidmuller ’W’ series fused terminals with standard screw clamp technology gives you short circuit and overload protection.
Note
The voltage and current ratings are to VDE ratings.
For stock number you will need a 20 x 5mm fuse
For stock number you will need a 32 x 6.3mm fuse
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Fused DIN Rail Terminal, 9.1mm Width, Wemid Material - W Series - 1880430000
Protect your system and users from shock with this fused DIN rail terminal from Weidmuller. It features short circuit and overload protection to stop sudden surges from damaging or disrupting your equipment. An impulse withstand voltage rating of 6kV means it's protected against powerful surges. The special Wemid thermoplastic housing is flame-retardant for safety in the event of a fire.
Features & Benefits
• Wide operating temperature range between -50°C and +120°C for use in demanding conditions
• Snap-on mounting for ease of installation
• Screw connections for secure wiring
• Small dimensions of 81.6 (H) x 9.1 (W) x 53.5mm (D) to maximise space on your DIN rail
• Light weight of 21.76g to place minimal strain on your equipment
Applications
• Telecommunications
• Energy management
• Manufacturing industry
What wire size does this component accept?
You can connect this component with wires between 30 and 10AWG in size, making it a versatile option.
What type of DIN rail is compatible with this product?
To secure this module to your system, mount it on a TS35 or a deep top hat-compatible DIN rail (467-428).
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
The Weidmuller ’W’ series fused terminals with standard screw clamp technology gives you short circuit and overload protection.
The voltage and current ratings are to VDE ratings.
For stock number you will need a 20 x 5mm fuse
For stock number you will need a 32 x 6.3mm fuse
For stock number you will need a 20 x 5mm fuse
For stock number you will need a 32 x 6.3mm fuse
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Protect your system and users from shock with this fused DIN rail terminal from Weidmuller. It features short circuit and overload protection to stop sudden surges from damaging or disrupting your equipment. An impulse withstand voltage rating of 6kV means it's protected against powerful surges. The special Wemid thermoplastic housing is flame-retardant for safety in the event of a fire.
• Wide operating temperature range between -50°C and +120°C for use in demanding conditions
• Snap-on mounting for ease of installation
• Screw connections for secure wiring
• Small dimensions of 81.6 (H) x 9.1 (W) x 53.5mm (D) to maximise space on your DIN rail
• Light weight of 21.76g to place minimal strain on your equipment
• Snap-on mounting for ease of installation
• Screw connections for secure wiring
• Small dimensions of 81.6 (H) x 9.1 (W) x 53.5mm (D) to maximise space on your DIN rail
• Light weight of 21.76g to place minimal strain on your equipment
• Telecommunications
• Energy management
• Manufacturing industry
• Energy management
• Manufacturing industry
You can connect this component with wires between 30 and 10AWG in size, making it a versatile option.
To secure this module to your system, mount it on a TS35 or a deep top hat-compatible DIN rail (467-428).
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Black |
| Number of Levels | Single |
| American Wire Gauge | 30 ? 10AWG |
| Series | W |
| Termination Method | Screw |
| Cable CSA | 4mm² |
| Fused | Yes |
| Current Rating | 15A |
| Voltage Rating | 300 V |
| Pitch | 9.1mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
| Standards Met | CE, CSA, EAC, ROHS |
