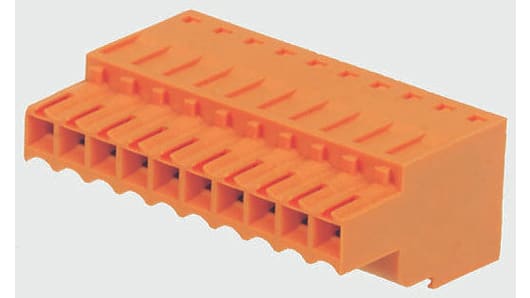

weidmuller BLZF 3.50/10/180 SN OR BX - 1690270000 BL 10-pin PCB Terminal Block, 3.5mm Pitch, Crimp Termination
Product Description
Standard Density Connector Cable Mount Tension Clamp
Steel tension clamps secure conductors to the electroplated copper bar for minimum contact resistance and less corrosion.
Features and Benefits
• Cable mount clamp
• Female plug
• Provides space for labelling and coding
3.5mm Pitch - weidmuller Omnimate Range
The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.
Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
Specifications
Product Description
• Female plug
• Provides space for labelling and coding
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
Specifications
Attribute | Value |
Number of Contacts | 10 |
Pitch | 3.5mm |
Mounting Type | Cable Mount |
Termination Method | Crimp |
Current Rating | 14.5A |
Colour | Orange |
Voltage Rating | 320 V |
Series | BL |
Material | PBT |
