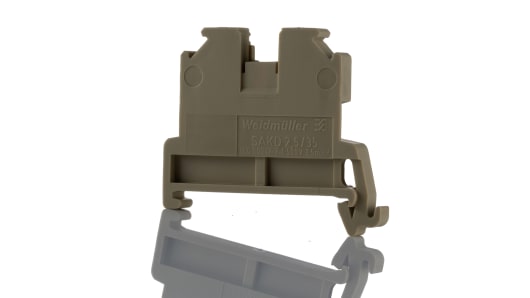

weidmuller SAKD 2.5/35 Beige SAK Feed Through Terminal Block, Single level, 2.5mm², 500 V
weidmuller SAKD 2.5/35 Beige SAK Feed Through Terminal Block, Single level, 2.5mm², 500 V Product Description SAK Series Modular Feed Through Terminals High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make...
weidmuller SAKD 2.5/35 Beige SAK Feed Through Terminal Block, Single level, 2.5mm², 500 V
Product Description
SAK Series Modular Feed Through Terminals
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
Features and Benefits
• Steel clamping yoke for mechanical function
• Copper current bar for electrical function
• No maintenance, vibration-proof screw connection
• Low voltage drop and gas-tight contact point
• Clamping point suitable for a wide range of cross-sections
• Three different locking feet available: for TS32, TS35 or a combination of the two
• Different isolation materials: PA6.6, KrG, KrS
• Large selection of special terminals with various connection systems
Weidmuller Feed-Through Terminal Block, 24A Current Rating, 6kV Rated Impulse Withstand Voltage - SAK Series - SAKD 2.5/35
Snap extra connectivity into your control cabinet with this Weidmuller terminal block. Thanks to its handy feed-through terminals, it easily takes your wires so you can breeze through system set-up. You can put it to the test in demanding applications as it has a high current rating of 24A. Simple DIN rail mounting means the device clips securely into place on industry-standard rails to take the hassle out of installation. As it accepts wire sizes from 28 to 12AWG, this terminal block is a sure fit for many common conductors.
Features & Benefits
• Screw terminals help to minimise the risk of accidental disconnection
• Open right-side panel makes for convenient wiring access while mounted
• Compact body dimensions of 44 (H) x 5 (W) x 38mm (D) for easy installation in tight spaces
Applications
• Electronics manufacturing
• Lighting systems
• Automotive industry
Can I use this product in extreme temperatures?
This block has a broad operating temperature range between -50°C and +100°C, making it a safe bet for use in harsh industrial environments.
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
• Steel clamping yoke for mechanical function
• Copper current bar for electrical function
• No maintenance, vibration-proof screw connection
• Low voltage drop and gas-tight contact point
• Clamping point suitable for a wide range of cross-sections
• Three different locking feet available: for TS32, TS35 or a combination of the two
• Different isolation materials: PA6.6, KrG, KrS
• Large selection of special terminals with various connection systems
Snap extra connectivity into your control cabinet with this Weidmuller terminal block. Thanks to its handy feed-through terminals, it easily takes your wires so you can breeze through system set-up. You can put it to the test in demanding applications as it has a high current rating of 24A. Simple DIN rail mounting means the device clips securely into place on industry-standard rails to take the hassle out of installation. As it accepts wire sizes from 28 to 12AWG, this terminal block is a sure fit for many common conductors.
• Screw terminals help to minimise the risk of accidental disconnection
• Open right-side panel makes for convenient wiring access while mounted
• Compact body dimensions of 44 (H) x 5 (W) x 38mm (D) for easy installation in tight spaces
• Open right-side panel makes for convenient wiring access while mounted
• Compact body dimensions of 44 (H) x 5 (W) x 38mm (D) for easy installation in tight spaces
• Electronics manufacturing
• Lighting systems
• Automotive industry
• Lighting systems
• Automotive industry
This block has a broad operating temperature range between -50°C and +100°C, making it a safe bet for use in harsh industrial environments.
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| American Wire Gauge | 28 ? 12AWG |
| Series | SAK |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 500 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +100°C |
