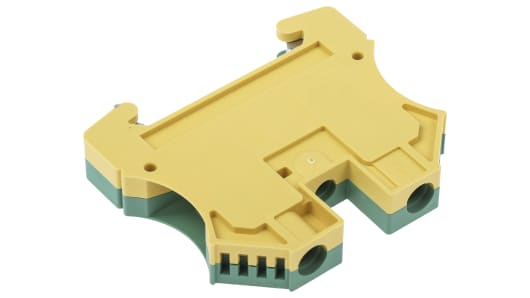

weidmuller 1010300000 2-Way WPE 10 Earth Terminal Block, 10mm², 16 ? 6 AWG Wire, Screw Down, Wemid Housing, ATEX
weidmuller 1010300000 2-Way WPE 10 Earth Terminal Block, 10mm², 16 ? 6 AWG Wire, Screw Down, Wemid Housing, ATEX Product Description Earth Terminals Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth...
weidmuller 1010300000 2-Way WPE 10 Earth Terminal Block, 10mm², 16 ? 6 AWG Wire, Screw Down, Wemid Housing, ATEX
Product Description
Earth Terminals
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
Benefits
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
Typical Applications
Designed to give you the best conductivity in applications such as control panels and rails.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Earth Terminal Block, 1.5 to 16mm² Cross-Section Range, 9.9mm Width - W Series - 1010300000
Bring your system back to earth and keep it grounded with this earth terminal block from Weidmuller. As it flushes excess charge from your circuits, it helps cut out electrical hazards to keep your components in safe hands. By accommodating conductor cross-sections between 1.5 and 16mm², the product works with many standard connectors, so there's no need to change your wiring. The device's reliable Wemid housing provides effective insulation, ensuring there are no electric shocks or surprises. For simple identification, its green and yellow body catches your eye on busy rails.
• Compact dimensions of 56 (H) x 9.9 (W) x 46.5mm (D) for mounting on packed rails
• Screw terminals secure conductors in place to help minimise disruption from jostling
• Directly snaps onto DIN rails for quick mounting
Applications
• Switchboards
• Power distribution networks
• Heating systems
• Manufacturing industry
What operating temperatures can I use this terminal block in?
You can use the unit in operating temperatures between -50°C and +120°C, so it's a reliable choice for harsh industrial conditions.
Approvals
7777
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
• Protective insulation
• Screw mounted connection
Designed to give you the best conductivity in applications such as control panels and rails.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Bring your system back to earth and keep it grounded with this earth terminal block from Weidmuller. As it flushes excess charge from your circuits, it helps cut out electrical hazards to keep your components in safe hands. By accommodating conductor cross-sections between 1.5 and 16mm², the product works with many standard connectors, so there's no need to change your wiring. The device's reliable Wemid housing provides effective insulation, ensuring there are no electric shocks or surprises. For simple identification, its green and yellow body catches your eye on busy rails.
• Compact dimensions of 56 (H) x 9.9 (W) x 46.5mm (D) for mounting on packed rails
• Screw terminals secure conductors in place to help minimise disruption from jostling
• Directly snaps onto DIN rails for quick mounting
• Screw terminals secure conductors in place to help minimise disruption from jostling
• Directly snaps onto DIN rails for quick mounting
• Switchboards
• Power distribution networks
• Heating systems
• Manufacturing industry
• Power distribution networks
• Heating systems
• Manufacturing industry
You can use the unit in operating temperatures between -50°C and +120°C, so it's a reliable choice for harsh industrial conditions.
7777
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Earth Block Type | WPE 10 |
| Wire Size | 16 ? 6 AWG |
| Cable CSA | 10mm² |
| Colour | Green/Yellow |
| Number of Ways | 2 |
| Termination Method | Screw Down |
| Housing Material | Wemid |
| Current Rating | 1.2kA |
| Voltage Rating | 800 V |
| Length | 60mm |
| Width | 9.9mm |
| Height | 47mm |
| Maximum Operating Temperature | +100°C |
| Hazardous Area Certification | ATEX |
| Minimum Operating Temperature | -50°C |
