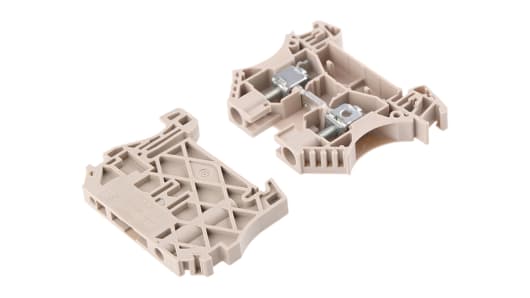

weidmuller 1781740000 WDU DIN Rail Terminal Block, 6mm², 800 V
weidmuller 1781740000 WDU DIN Rail Terminal Block, 6mm², 800 V Product Description Terminal Kits Kit 1 – qty 10 of stock no.425-190Kit 2 – qty 10 of stock no. 425-207Kit 3 – qty 10 of stock no. 425-213Kit 4 – qty 10 of stock no. 425-229RS Stock 425-4267 - is...
weidmuller 1781740000 WDU DIN Rail Terminal Block, 6mm², 800 V
Product Description
Terminal Kits
Kit 1 – qty 10 of stock no.425-190
Kit 2 – qty 10 of stock no. 425-207
Kit 3 – qty 10 of stock no. 425-213
Kit 4 – qty 10 of stock no. 425-229
RS Stock 425-4267 - is a Terminal Kit of 13 pieces
425-4295 contains 5 terminals, an end plate and 2 end stops
425-4289 is provided in 1 kit of 10 pcs
Convenient kits available containing single size WDU terminals in sizes 2.5mm, 4mm, 6mm, and 10mm
An end plate (stock no. )and two end stops (stock no. ) are also included in each kit
Voltage rating 800V
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Approvals
CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EEx’e; EEx’I’ Acceptance
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Kit 1 – qty 10 of stock no.425-190
Kit 2 – qty 10 of stock no.425-207
Kit 3 – qty 10 of stock no.425-213
Kit 4 – qty 10 of stock no.425-229
RS Stock425-4267 - is a Terminal Kit of 13 pieces
425-4295 contains 5 terminals, an end plate and 2 end stops
Kit 2 – qty 10 of stock no.
Kit 3 – qty 10 of stock no.
Kit 4 – qty 10 of stock no.
RS Stock
425-4295 contains 5 terminals, an end plate and 2 end stops
Convenient kits available containing single size WDU terminals in sizes 2.5mm, 4mm, 6mm, and 10mm
An end plate (stock no. )and two end stops (stock no. ) are also included in each kit
Voltage rating 800V
An end plate (stock no. )and two end stops (stock no. ) are also included in each kit
Voltage rating 800V
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EEx’e; EEx’I’ Acceptance
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Series | WDU |
| Termination Method | Screw |
| Cable CSA | 6mm² |
| Voltage Rating | 800 V |
| Current Rating | 41A |
