weidmuller 2467030000 Pro Top Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 48V dc dc Output, 10A Output,
weidmuller 2467030000 Pro Top Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 48V dc dc Output, 10A Output, Product Description Weidmuller DIN Rail Panel Mount Power Supply The Weidmuller DIN rail panel mount power supply is known for its good quality and high end performance....
weidmuller 2467030000 Pro Top Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 48V dc dc Output, 10A Output,
Product Description

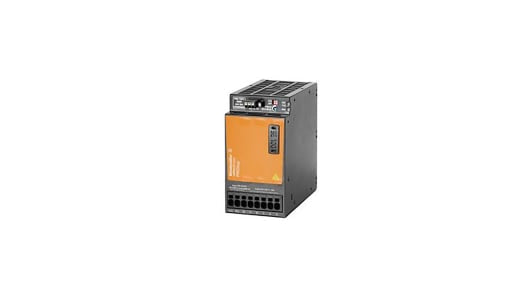

Weidmuller DIN Rail Panel Mount Power Supply
The Weidmuller DIN rail panel mount power supply is known for its good quality and high end performance. It has an input voltage range from 85VAC to 277VAC. The output current is 10A and the maximum input current is 5A. The switch mode pro top series is a DIN rail mounting type power supply. The ripple and noise factor is 50mV and high MTBF device.
Features and Benefits
• Cost efficient
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
Applications
• Circuit breakers
• Industrial environments
• Powerful motor starts
• Reliable triggering
Certifications
• UL approved
Specifications
Product Description
The Weidmuller DIN rail panel mount power supply is known for its good quality and high end performance. It has an input voltage range from 85VAC to 277VAC. The output current is 10A and the maximum input current is 5A. The switch mode pro top series is a DIN rail mounting type power supply. The ripple and noise factor is 50mV and high MTBF device.
• Cost efficient
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
• Circuit breakers
• Industrial environments
• Powerful motor starts
• Reliable triggering
• Industrial environments
• Powerful motor starts
• Reliable triggering
• UL approved
Specifications
| Attribute | Value |
| Output Voltage | 48V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 ? 277V ac |
| Power Rating | 480W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Type | Switch Mode |
| Width | 68mm |
| Height | 130mm |
| Series | Pro Top |
| Depth | 125mm |
| Special Features | Series Switching Capability, Switch-Mode Power Supply |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Ripple And Noise | 50mV Pk-Pk |
| MTBF | 1000000h |
