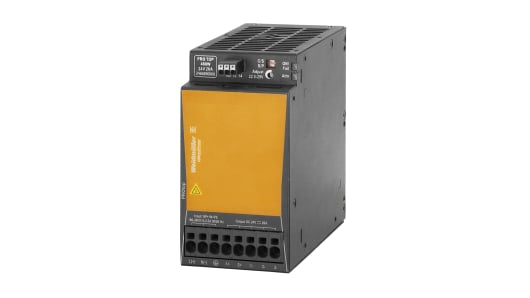

weidmuller 2466890000 Pro Top Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 24V dc dc Output, 20A Output,
weidmuller 2466890000 Pro Top Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 24V dc dc Output, 20A Output, Product Description High-end power supplies must perform efficiently and reliably, even in challenging industrial environments. This requires high power reserves, a long service life and optimal protection...
weidmuller 2466890000 Pro Top Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 24V dc dc Output, 20A Output,
Product Description
High-end power supplies must perform efficiently and reliably, even in challenging industrial environments. This requires high power reserves, a long service life and optimal protection against overvoltage, vibration and extreme temperature conditions. New DCL technology gives PROtop an outstanding dynamic range. This can be used for the reliable triggering of circuit breakers or for powerful motor starts.
Specifications
Product Description
High-end power supplies must perform efficiently and reliably, even in challenging industrial environments. This requires high power reserves, a long service life and optimal protection against overvoltage, vibration and extreme temperature conditions. New DCL technology gives PROtop an outstanding dynamic range. This can be used for the reliable triggering of circuit breakers or for powerful motor starts.
Specifications
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 20A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 ? 277V ac |
| Power Rating | 480W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Type | Switch Mode |
| Width | 68mm |
| Height | 130mm |
| Series | Pro Top |
| Depth | 125mm |
| Minimum Temperature | -25°C |
| Ripple And Noise | 50mV Pk-Pk |
| Maximum Temperature | +70°C |
| Special Features | Series Switching Capability, Switch-Mode Power Supply |
| MTBF | 1000000h |
