weidmuller 1478130000 PRO MAX Switch Mode DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 24V dc dc Output, 10A Output,
Product Description

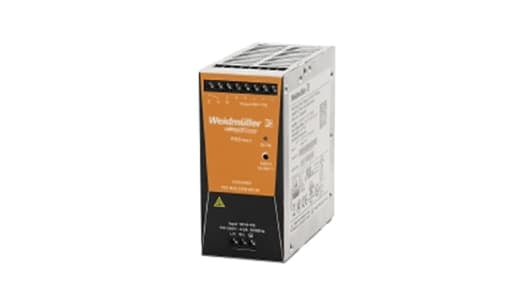

Weidmuller DIN Rail Power Supply, 85 to 277V AC Input Voltage Range, 240W Output Power - PRO MAX Series - 1478130000
When durability and performance are top priorities, look no further than this DIN rail power supply from Weidmuller. It accepts inputs ranging from 85 to 277V AC or 80 to 370V DC and steps them down a stable 24V DC output. Thanks to the potentiometer, you can adjust the output voltage to between 22.5 and 29.5V DC, making it a piece of cake to tailor it according to the needs of your application. You can count on this unit to power through in harsh environments as it has a broad operating temperature range of -25°C to +70°C.
Features & Benefits
• Built-in fuse for protection against surge damage
• Screw terminals for a secure electrical connection
• Efficiency of 91.5% means it wastes little energy as heat
Applications
• Factory automation
• Power management
• Process control
Is this unit safe to handle?
Yes, this product's IP20 rating means it's touchproof and protected against objects larger than 12mm in size, so there won't be any shocks during installation or maintenance.
Specifications
Product Description
When durability and performance are top priorities, look no further than this DIN rail power supply from Weidmuller. It accepts inputs ranging from 85 to 277V AC or 80 to 370V DC and steps them down a stable 24V DC output. Thanks to the potentiometer, you can adjust the output voltage to between 22.5 and 29.5V DC, making it a piece of cake to tailor it according to the needs of your application. You can count on this unit to power through in harsh environments as it has a broad operating temperature range of -25°C to +70°C.
• Built-in fuse for protection against surge damage
• Screw terminals for a secure electrical connection
• Efficiency of 91.5% means it wastes little energy as heat
• Screw terminals for a secure electrical connection
• Efficiency of 91.5% means it wastes little energy as heat
• Factory automation
• Power management
• Process control
• Power management
• Process control
Yes, this product's IP20 rating means it's touchproof and protected against objects larger than 12mm in size, so there won't be any shocks during installation or maintenance.
Specifications
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 ? 277V ac |
| Power Rating | 240W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Type | Switched Mode Power Supply |
| Width | 60mm |
| Height | 130mm |
| Series | PRO MAX |
| Depth | 125mm |
| MTBF | >500000h |
| Special Features | Durable, High Performance |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| Efficiency | 91.5% |
| Ripple And Noise | <50mV |
