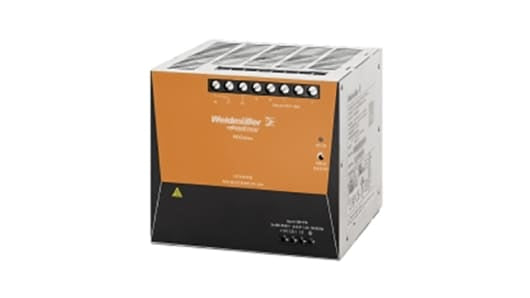

weidmuller 1478200000 PRO MAX Switch Mode DIN Rail Power Supply, 320 ? 575V ac ac, dc Input, 24V dc dc Output, 40A Output,
weidmuller 1478200000 PRO MAX Switch Mode DIN Rail Power Supply, 320 ? 575V ac ac, dc Input, 24V dc dc Output, 40A Output, Product Description PROmax Series Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power...
weidmuller 1478200000 PRO MAX Switch Mode DIN Rail Power Supply, 320 ? 575V ac ac, dc Input, 24V dc dc Output, 40A Output,
Product Description
PROmax Series
Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies are a diverse solution for demanding automation. A key feature of the power supplies is the high boost capability and full power in a wide temperature range. The power supplies are designed for especially demanding requirements and also suitable for confined spaces.
Reliable
Efficient
Robust
Weidmuller DIN Rail Power Supply, 93.5% Efficiency, 450 to 800V DC Input Voltage Range - PRO MAX Series - 1478200000
Ensure your control cabinet keeps its cool with this DIN rail power supply from Weidmuller. It produces a steady output voltage of 24V DC to keep your equipment fully energised. A wide operating temperature range between -25°C and +70°C means it can handle the heat. For enhanced reliability, this product is protected against inverse voltage. Thanks to its rugged corrosion-resistant metal housing, this power supply is just what you need for harsh industrial settings.
Features & Benefits
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• LED indicators for quick and convenient visual diagnostics
• Efficiency of 93.5% for minimal power loss during switching
• Screw terminals for simple and secure wiring that won't come loose
• Immune to EMI for minimal crosstalk and reliable performance
Applications
• Pharmaceutical industry
• Packing warehouses
• Marine industry
• Aerospace engineering
Is this power supply protected against earth leakages?
Yes, to stop earth leakages from causing dangerous working conditions, this power supply trips earth currents up to 3.5mA.
Switch Mode - Weidmuller
Specifications
Product Description
Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies are a diverse solution for demanding automation. A key feature of the power supplies is the high boost capability and full power in a wide temperature range. The power supplies are designed for especially demanding requirements and also suitable for confined spaces.
Reliable
Efficient
Robust
Efficient
Robust
Ensure your control cabinet keeps its cool with this DIN rail power supply from Weidmuller. It produces a steady output voltage of 24V DC to keep your equipment fully energised. A wide operating temperature range between -25°C and +70°C means it can handle the heat. For enhanced reliability, this product is protected against inverse voltage. Thanks to its rugged corrosion-resistant metal housing, this power supply is just what you need for harsh industrial settings.
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• LED indicators for quick and convenient visual diagnostics
• Efficiency of 93.5% for minimal power loss during switching
• Screw terminals for simple and secure wiring that won't come loose
• Immune to EMI for minimal crosstalk and reliable performance
• LED indicators for quick and convenient visual diagnostics
• Efficiency of 93.5% for minimal power loss during switching
• Screw terminals for simple and secure wiring that won't come loose
• Immune to EMI for minimal crosstalk and reliable performance
• Pharmaceutical industry
• Packing warehouses
• Marine industry
• Aerospace engineering
• Packing warehouses
• Marine industry
• Aerospace engineering
Yes, to stop earth leakages from causing dangerous working conditions, this power supply trips earth currents up to 3.5mA.
Switch Mode - Weidmuller
Specifications
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 40A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 320 ? 575V ac |
| Power Rating | 960W |
| Electrical Phase | 3 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Type | Switched Mode Power Supply |
| Width | 140mm |
| Height | 130mm |
| Series | PRO MAX |
| Depth | 150mm |
| Efficiency | 93.5% |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Maximum Temperature | +70°C |
| Ripple And Noise | <50mV |
| MTBF | >500000h |
| Special Features | Durable, High Performance |
| Minimum Temperature | -25°C |
