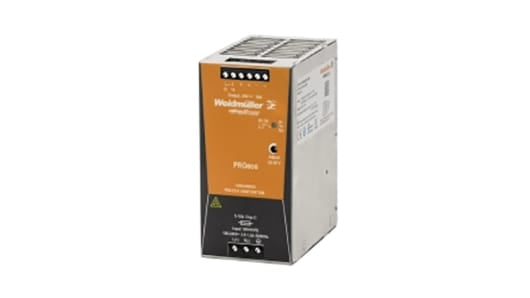

weidmuller 1469590000 PRO ECO DIN Rail Power Supply, 85 ? 264V ac ac, dc Input, 48V dc dc Output, 5A Output, 240W
Product Description
weidmuller Pro Eco DIN Rail Power Supply
The weidmuller Pro Eco series switch-mode DIN-rail power supply have 5A output current at 48VDC output voltage. Its most outstanding features are small size, high efficiency and minimal no-load loss that ensures low energy consumption. This power supply has a universal input voltage ranges between 85VAC and 264VAC/80VDC and 370VDC with adjustable output voltage. Its high immunity makes it suitable for almost every situation.
Features and Benefits
High efficiency up to 92%
Operation temperature ranges between -25°C and 70°C
Overload and short-circuit protection
Power rating is 240W
Reliable and robust
Remote monitoring via an integrated status relay
Ripple factor and noise is less than 100mV
Screw connection
Tricolour LED indicator for simple error detection
Applications
Factory automation
Power management
Process control
Certifications
CE certified
cULus
EAC
IP20 rated
TUV (EN/IEC 60950-1)
VDE
Specifications
Product Description
The weidmuller Pro Eco series switch-mode DIN-rail power supply have 5A output current at 48VDC output voltage. Its most outstanding features are small size, high efficiency and minimal no-load loss that ensures low energy consumption. This power supply has a universal input voltage ranges between 85VAC and 264VAC/80VDC and 370VDC with adjustable output voltage. Its high immunity makes it suitable for almost every situation.
High efficiency up to 92%
Operation temperature ranges between -25°C and 70°C
Overload and short-circuit protection
Power rating is 240W
Reliable and robust
Remote monitoring via an integrated status relay
Ripple factor and noise is less than 100mV
Screw connection
Tricolour LED indicator for simple error detection
Operation temperature ranges between -25°C and 70°C
Overload and short-circuit protection
Power rating is 240W
Reliable and robust
Remote monitoring via an integrated status relay
Ripple factor and noise is less than 100mV
Screw connection
Tricolour LED indicator for simple error detection
Factory automation
Power management
Process control
Power management
Process control
CE certified
cULus
EAC
IP20 rated
TUV (EN/IEC 60950-1)
VDE
cULus
EAC
IP20 rated
TUV (EN/IEC 60950-1)
VDE
Specifications
| Attribute | Value |
| Output Voltage | 48V dc |
| Output Current | 5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 ? 264V ac |
| Power Rating | 240W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Height | 125mm |
| Series | PRO ECO |
| Depth | 100mm |
| Minimum Temperature | -25°C |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Maximum Temperature | +70°C |
| Special Features | Compact Size, Easy to Maintain, Flexible, High Efficiency |
| Ripple And Noise | <100mV |
| MTBF | >500000h |
