weidmuller 1146510000 OMNIMATE SL 9-pin PCB Terminal Block, 5.08mm Pitch, Solder Termination
weidmuller 1146510000 OMNIMATE SL 9-pin PCB Terminal Block, 5.08mm Pitch, Solder Termination Product Description Vertical Open Ends Thro Hole Headers 3.2mm Pin Length These SL 5.08mm pitch Omnimate headers have a 3.2mm pin length for optimised Wave soldering. Note For mating cable mount terminals see typical stock numbers for Screw...
weidmuller 1146510000 OMNIMATE SL 9-pin PCB Terminal Block, 5.08mm Pitch, Solder Termination
Product Description

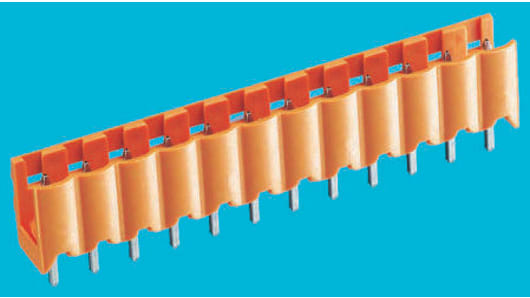

Vertical Open Ends Thro Hole Headers 3.2mm Pin Length
These SL 5.08mm pitch Omnimate headers have a 3.2mm pin length for optimised Wave soldering.
Note
For mating cable mount terminals see typical stock numbers for Screw type or for Rising Clamp type or for Tension Clamp Screwless type.
5.08mm Pitch -weidmuller Omnimate Range
weidmuller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.
• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
Specifications
Product Description
These SL 5.08mm pitch Omnimate headers have a 3.2mm pin length for optimised Wave soldering.
For mating cable mount terminals see typical stock numbers for Screw type or for Rising Clamp type or for Tension Clamp Screwless type.
5.08mm Pitch -weidmuller Omnimate Range
weidmuller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.
• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
Specifications
| Attribute | Value |
| Number of Contacts | 9 |
| Pitch | 5.08mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Type | Wire to Board |
| Current Rating | 18A |
| Body Orientation | Straight |
| Voltage Rating | 400 V |
| Series | OMNIMATE SL |
