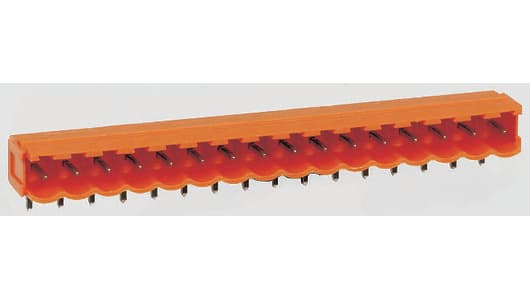

weidmuller 1515560000 OMNIMATE SL 8-pin PCB Terminal Block, 5.08mm Pitch, Solder Termination
weidmuller 1515560000 OMNIMATE SL 8-pin PCB Terminal Block, 5.08mm Pitch, Solder Termination Product Description Horizontal Closed Ends, PCB Headers Same PCB layout and dimensions as open end version but with closed ends, preventing mismating .,(Overall housing , 2mm wider than open end housing). Approvals UL (E 60693); CSA (12400) Approvals...
weidmuller 1515560000 OMNIMATE SL 8-pin PCB Terminal Block, 5.08mm Pitch, Solder Termination
Product Description
Horizontal Closed Ends, PCB Headers
Same PCB layout and dimensions as open end version but with closed ends, preventing mismating .,(Overall housing , 2mm wider than open end housing).
Approvals
UL (E 60693); CSA (12400)
Approvals
UL (E 60693); CSA (12400)
5.08mm Pitch -weidmuller Omnimate Range
weidmuller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.
• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
Specifications
Product Description
Same PCB layout and dimensions as open end version but with closed ends, preventing mismating .,(Overall housing , 2mm wider than open end housing).
UL (E 60693); CSA (12400)
UL (E 60693); CSA (12400)
5.08mm Pitch -weidmuller Omnimate Range
weidmuller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.
• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
Specifications
| Attribute | Value |
| Number of Contacts | 8 |
| Pitch | 5.08mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Type | Wire to Board |
| Current Rating | 12A |
| Body Orientation | Right Angle |
| Voltage Rating | 380 V ac, 450 V dc |
| Series | OMNIMATE SL |
