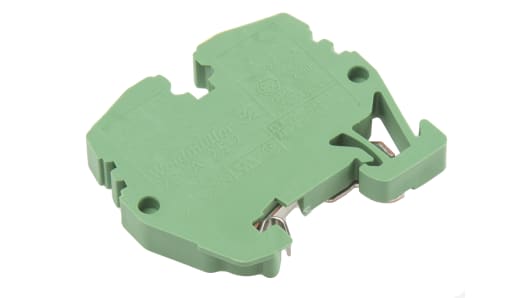

weidmuller 1720950000 Green/Yellow ZPEA Earth Terminal Block, Single level, 2.5mm², 500 V
weidmuller 1720950000 Green/Yellow ZPEA Earth Terminal Block, Single level, 2.5mm², 500 V Product Description Weidmuller Mini-modular Terminal Blocks Z Series Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series...
weidmuller 1720950000 Green/Yellow ZPEA Earth Terminal Block, Single level, 2.5mm², 500 V
Product Description
Weidmuller Mini-modular Terminal Blocks Z Series
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Features and Benefits
• One tier available
• Tension clamp technology
• Available in different colours
Approvals
UL,CSA
Approvals
UL; CSA
Specifications
Product Description
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
• One tier available
• Tension clamp technology
• Available in different colours
UL,CSA
UL; CSA
Specifications
| Attribute | Value |
| Colour | Green/Yellow |
| Number of Levels | Single |
| Series | ZPEA |
| American Wire Gauge | 26 ? 12AWG |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 500 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
