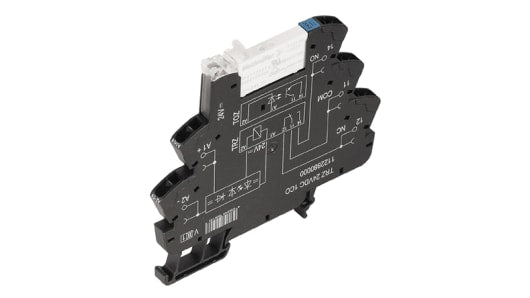

weidmuller 1122880000 DIN Rail Mount Interface Relay, 24V Coil, SPDT
weidmuller 1122880000 DIN Rail Mount Interface Relay, 24V Coil, SPDT Product Description Weidmuller Interface Relay, 250V AC Switching Voltage, 6kV Rated Impulse Withstand Voltage - TRZ Series - 1122880000 Need to connect components with different electrical voltages? Take charge with this interface relay from Weidmuller. The handy device uses galvanic...
weidmuller 1122880000 DIN Rail Mount Interface Relay, 24V Coil, SPDT
Product Description
Weidmuller Interface Relay, 250V AC Switching Voltage, 6kV Rated Impulse Withstand Voltage - TRZ Series - 1122880000
Need to connect components with different electrical voltages? Take charge with this interface relay from Weidmuller. The handy device uses galvanic isolation to prevent signal interference between a 24V DC input and a 250V AC output. This means it'll ensure that transmissions are safe and reliable, and you won't get your wires crossed. As it accepts wires ranging in size from 26 to 14AWG, it's a versatile piece of kit.
Features & Benefits
• Small dimensions of 90 (H) x 6.4 (W) x 88mm (D) to save space in your setup
• Light weight of 30.8g to place minimal strain on your equipment
• Wide operating temperature range between -40°C and +60°C for use in challenging environments
• IP20 rating means it's touchproof and protected from objects larger than 12mm
• Reverse polarity protection for additional electrical safety
Applications
• X-ray equipment
• Radio-electronic installations
• Automation networks
• Power systems
Is this unit flame-resistant?
Yes, this product stops burning in 10 seconds or less to prevent the spread of flames in the event of a fire.
Specifications
Product Description
Need to connect components with different electrical voltages? Take charge with this interface relay from Weidmuller. The handy device uses galvanic isolation to prevent signal interference between a 24V DC input and a 250V AC output. This means it'll ensure that transmissions are safe and reliable, and you won't get your wires crossed. As it accepts wires ranging in size from 26 to 14AWG, it's a versatile piece of kit.
• Small dimensions of 90 (H) x 6.4 (W) x 88mm (D) to save space in your setup
• Light weight of 30.8g to place minimal strain on your equipment
• Wide operating temperature range between -40°C and +60°C for use in challenging environments
• IP20 rating means it's touchproof and protected from objects larger than 12mm
• Reverse polarity protection for additional electrical safety
• Light weight of 30.8g to place minimal strain on your equipment
• Wide operating temperature range between -40°C and +60°C for use in challenging environments
• IP20 rating means it's touchproof and protected from objects larger than 12mm
• Reverse polarity protection for additional electrical safety
• X-ray equipment
• Radio-electronic installations
• Automation networks
• Power systems
• Radio-electronic installations
• Automation networks
• Power systems
Yes, this product stops burning in 10 seconds or less to prevent the spread of flames in the event of a fire.
Specifications
| Attribute | Value |
| Minimum Input Voltage | 24V ac/dc |
| Coil Voltage | 24V |
| Maximum Input Voltage | 230V ac/dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac |
| Terminal Type | Spring Clamp |
| Length | 90mm |
| Depth | 6.4mm |
| Series | TRZ |
| Height | 88mm |
| Contact Material | Silver Alloy |
| Input Current | 10mA |
| Number of Poles | 1 |
| Input Voltage Range | 24 ? 230V ac/dc |
| Dimensions | 90 x 6.4 x 88mm |
| Maximum Operating Temperature | +60°C |
| Turn Off Time | <7ms |
| Operating Temperature Range | -40 ? +60°C |
| Turn On Time | <6ms |
| Minimum Operating Temperature | -40°C |
| Relay Switching Classification | General Purpose Relay |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
