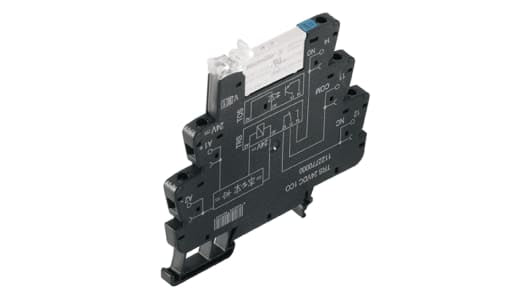

weidmuller 1122850000 DIN Rail Mount Interface Relay, 24 ? 230V ac/dc Coil, SPDT
weidmuller 1122850000 DIN Rail Mount Interface Relay, 24 ? 230V ac/dc Coil, SPDT Product Description Weidmuller Interface Relay Module The Weidmuller interface relay module is a compact electromechanical device equipped with a 24VAC/DC coil and 1CO switching contact configuration. This device has many approvals and hence, it can be used...
weidmuller 1122850000 DIN Rail Mount Interface Relay, 24 ? 230V ac/dc Coil, SPDT
Product Description
Weidmuller Interface Relay Module
The Weidmuller interface relay module is a compact electromechanical device equipped with a 24VAC/DC coil and 1CO switching contact configuration. This device has many approvals and hence, it can be used for many applications around the world. It also offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.
Features and Benefits
Relay output current is 6A
AgNi contact along with optionally hard gold-plating available
The operating temperature ranges between -40°C and 60°C
It has various protective circuits in the input (free-wheel diode, RC element)
Screw connection
Din rail type mount
Illuminated ejection lever
Applications
Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls
Certifications
IP20 rated protection
CE certified
UL approved
EAC certified
cULus certified
47053-12
EN 50178
EN 55011
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
Specifications
Product Description
The Weidmuller interface relay module is a compact electromechanical device equipped with a 24VAC/DC coil and 1CO switching contact configuration. This device has many approvals and hence, it can be used for many applications around the world. It also offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.
Relay output current is 6A
AgNi contact along with optionally hard gold-plating available
The operating temperature ranges between -40°C and 60°C
It has various protective circuits in the input (free-wheel diode, RC element)
Screw connection
Din rail type mount
Illuminated ejection lever
AgNi contact along with optionally hard gold-plating available
The operating temperature ranges between -40°C and 60°C
It has various protective circuits in the input (free-wheel diode, RC element)
Screw connection
Din rail type mount
Illuminated ejection lever
Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls
Motor control applications
Electrical isolation
Signal matching between electronic controls
IP20 rated protection
CE certified
UL approved
EAC certified
cULus certified
47053-12
EN 50178
EN 55011
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
CE certified
UL approved
EAC certified
cULus certified
47053-12
EN 50178
EN 55011
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
Specifications
| Attribute | Value |
| Coil Voltage | 24 ? 230V ac/dc |
| Minimum Input Voltage | 24V ac/dc |
| Maximum Input Voltage | 230V ac/dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac |
| Terminal Type | Screw |
| Length | 90mm |
| Series | TRS |
| Depth | 6.4mm |
| Height | 88mm |
| Contact Material | Silver Alloy |
| Input Current | (24 V dc) 22 mA, (230 V ac) 4mA |
| Number of Poles | 1 |
| Operating Temperature Range | -40 ? +60°C |
| Dimensions | 90 x 6.4 x 88mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -40°C |
| Relay Switching Classification | General Purpose Relay |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
| Input Voltage Range | 24 ? 230V ac/dc |
| Turn On Time | <22ms |
| Turn Off Time | <100ms |
