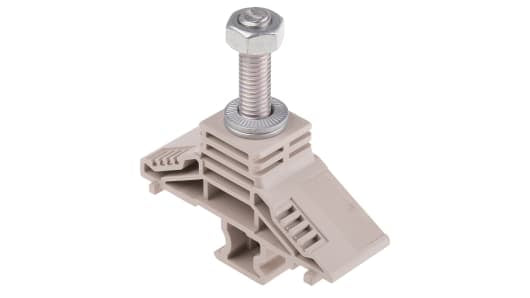

weidmuller 1319060000 - WF 8/32 Dark Beige WF 8/32 Feed Through Terminal Block, Single level, 50mm², 1 kV
weidmuller 1319060000 - WF 8/32 Dark Beige WF 8/32 Feed Through Terminal Block, Single level, 50mm², 1 kV Product Description Stud Terminals W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with...
weidmuller 1319060000 - WF 8/32 Dark Beige WF 8/32 Feed Through Terminal Block, Single level, 50mm², 1 kV
Product Description
Stud Terminals
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
Features and Benefits
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
Approvals
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Dark Beige |
| Number of Levels | Single |
| Series | WF 8/32 |
| Termination Method | Screw |
| Cable CSA | 50mm² |
| Voltage Rating | 1 kV |
| Current Rating | 150A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
