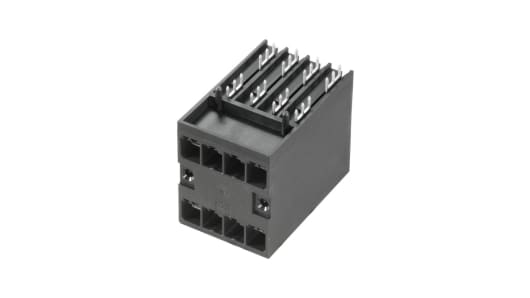

weidmuller 1543340000 BV/SV 7.62HP 12-pin PCB Connector, 7.62mm Pitch, 2 Rows
Product Description
The Weidmuller PCB Connector has double-row high-current, high-performance pin headers, with or without flange, for fast, tool-free locking. Optimised for “book-size modules” measuring 50mm wide and above. With integrated mounting option for mounting to the housing wall. Exceptional reliability and operational safety thanks to 100% failsafe mating profile, unique coding and optional additional screw mounting in the flange.
Mounting onto the PCB THT solder connection
Pitch in mm (P) 7.62 mm
Number of poles 4
Outgoing elbow 270°
Specifications
Product Description
The Weidmuller PCB Connector has double-row high-current, high-performance pin headers, with or without flange, for fast, tool-free locking. Optimised for “book-size modules” measuring 50mm wide and above. With integrated mounting option for mounting to the housing wall. Exceptional reliability and operational safety thanks to 100% failsafe mating profile, unique coding and optional additional screw mounting in the flange.
Mounting onto the PCB THT solder connection
Pitch in mm (P) 7.62 mm
Number of poles 4
Outgoing elbow 270°
Pitch in mm (P) 7.62 mm
Number of poles 4
Outgoing elbow 270°
Specifications
| Attribute | Value |
| Number of Contacts | 12 |
| Pitch | 7.62mm |
| Number of Rows | 2 |
| Mounting Type | PCB |
| Gender | Male |
| Series | BV/SV 7.62HP |
