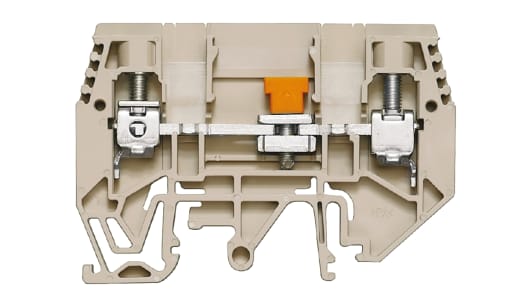

weidmuller 1934810000 Brown W Disconnect Terminal Block, Single level, 630 V
Product Description
WTL Test Disconnect Terminal Blocks
Test-disconnect terminal blocks feature both spring and screw connection technology that allow for creating the converter circuits needed for measuring current, voltage and power.
Features and Benefits
• Current and voltage transformer wiring
• Measures parameters safely and sophisticated
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Test-disconnect terminal blocks feature both spring and screw connection technology that allow for creating the converter circuits needed for measuring current, voltage and power.
• Current and voltage transformer wiring
• Measures parameters safely and sophisticated
• Snap-on mounting
• Measures parameters safely and sophisticated
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 20 ? 8AWG |
| Series | W |
| Termination Method | Screw |
| Current Rating | 57A |
| Voltage Rating | 630 V |
| Pitch | 7.9mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
