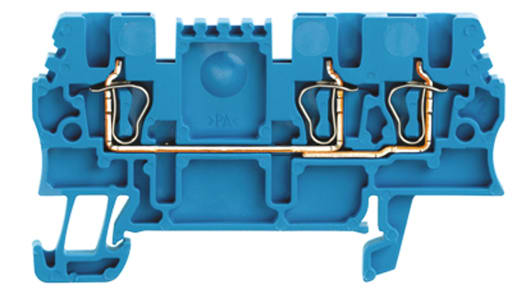

weidmuller 1775540000 Blue Factory Automation Feed Through Terminal Block, Single level, 1.5mm², 500 V
Product Description
Weidmuller Feedthrough Terminal Blocks Z Series
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Features and Benefits
• One, two, three and four tier available
• Tension clamp technology
• Available in different colours
Specifications
Product Description
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Specifications
Attribute | Value |
Colour | Blue |
Number of Levels | Single |
Series | Factory Automation |
American Wire Gauge | 30 ? 16AWG |
Termination Method | Clamp |
Cable CSA | 1.5mm² |
Current Rating | 17.5A |
Voltage Rating | 500 V |
Pitch | 3.5mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
