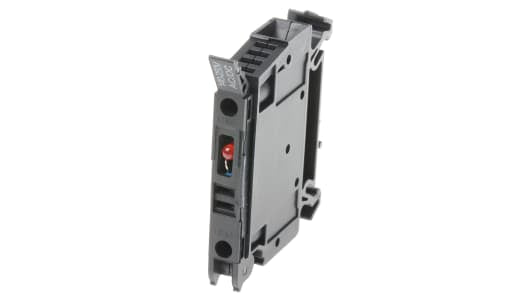

weidmuller 1886550000 Black W Fused DIN Rail Terminal, Single level, 4mm², 500 V
weidmuller 1886550000 Black W Fused DIN Rail Terminal, Single level, 4mm², 500 V Product Description Fused LED This weidmuller Fuse terminal is available in two different types, Fuse terminal with pivoting retaining lever and Fuse terminal with plug in SIHA fuse holder. The fuse holder is opened lever style and...
weidmuller 1886550000 Black W Fused DIN Rail Terminal, Single level, 4mm², 500 V
Product Description
Fused LED
This weidmuller Fuse terminal is available in two different types, Fuse terminal with pivoting retaining lever and Fuse terminal with plug in SIHA fuse holder. The fuse holder is opened lever style and the fuse is shrouded when installed,Single LED indicates fuse failure
Note
The voltage and current ratings are to VDE ratings.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Fused DIN Rail Terminal, 8mm Width, 30 to 12AWG Wire Size - W Series - 1886550000
Neatly link cables in your machinery with this fused DIN rail terminal from Weidmuller. It uses a screw termination method for easy and secure wiring with the aid of a simple screwdriver. A broad operating temperature range between -50°C and +120°C makes this component a reliable choice for use in harsh industrial conditions. Thanks to its current rating of 6.3A, it's suitable for use in high-power applications. The housing is made of Wemid for resistance to heat and impact, so you can depend on this terminal for long-term performance.
Features & Benefits
• Compact dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) for installation in areas with limited space
• Snap-on mounting design for fast and easy installation without the need for specialised tools
• Light weight of 11.78g to place minimal strain on your equipment
Applications
• Railway facilities
• Automation and robotics
• Lighting control systems
Is this device flame-retardant?
Yes. This device will self-extinguish in 10 seconds in the event of a fire, helping to ensure workplace safety.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
This weidmuller Fuse terminal is available in two different types, Fuse terminal with pivoting retaining lever and Fuse terminal with plug in SIHA fuse holder. The fuse holder is opened lever style and the fuse is shrouded when installed,Single LED indicates fuse failure
The voltage and current ratings are to VDE ratings.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Neatly link cables in your machinery with this fused DIN rail terminal from Weidmuller. It uses a screw termination method for easy and secure wiring with the aid of a simple screwdriver. A broad operating temperature range between -50°C and +120°C makes this component a reliable choice for use in harsh industrial conditions. Thanks to its current rating of 6.3A, it's suitable for use in high-power applications. The housing is made of Wemid for resistance to heat and impact, so you can depend on this terminal for long-term performance.
• Compact dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) for installation in areas with limited space
• Snap-on mounting design for fast and easy installation without the need for specialised tools
• Light weight of 11.78g to place minimal strain on your equipment
• Snap-on mounting design for fast and easy installation without the need for specialised tools
• Light weight of 11.78g to place minimal strain on your equipment
• Railway facilities
• Automation and robotics
• Lighting control systems
• Automation and robotics
• Lighting control systems
Yes. This device will self-extinguish in 10 seconds in the event of a fire, helping to ensure workplace safety.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Black |
| Number of Levels | Single |
| Series | W |
| American Wire Gauge | 30 ? 12AWG |
| Termination Method | Screw |
| Cable CSA | 4mm² |
| Fused | Yes |
| Current Rating | 6.3A |
| Voltage Rating | 500 V |
| Pitch | 9.1mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
| Standards Met | CE, CSA, EAC, ROHS |
