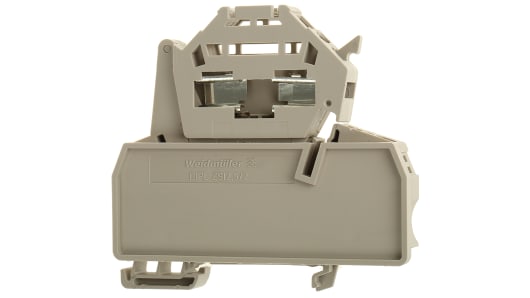

weidmuller 1616460000 Beige ZSI Fused DIN Rail Terminal, Single level, 500 V
weidmuller 1616460000 Beige ZSI Fused DIN Rail Terminal, Single level, 500 V Product Description Fuse Terminals Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For end...
weidmuller 1616460000 Beige ZSI Fused DIN Rail Terminal, Single level, 500 V
Product Description
Fuse Terminals
Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For end protection, an end cover for the lower half of the terminal is required and a fuse plate, which flips up for easy access, is required for protection of the upper fuse carrier.
Note
The 1 1/4 x 1/4 terminal does not have ATEX Approval.
Approvals
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
Approvals
1-3, 5-7
Specifications
Product Description
Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For end protection, an end cover for the lower half of the terminal is required and a fuse plate, which flips up for easy access, is required for protection of the upper fuse carrier.
The 1 1/4 x 1/4 terminal does not have ATEX Approval.
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
1-3, 5-7
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| American Wire Gauge | 26 ? 12AWG |
| Series | ZSI |
| Termination Method | Clamp |
| Fused | Yes |
| Voltage Rating | 500 V |
| Current Rating | 12A |
| Pitch | 12mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
