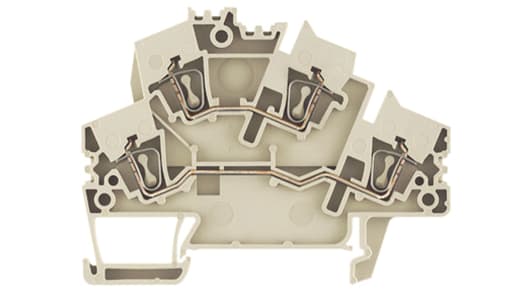

weidmuller 1790990000 Beige Z Feed Through Terminal Block, Double level, 2.5mm², 800 V
weidmuller 1790990000 Beige Z Feed Through Terminal Block, Double level, 2.5mm², 800 V Product Description Weidmuller Feedthrough Terminal Blocks Z Series Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the...
weidmuller 1790990000 Beige Z Feed Through Terminal Block, Double level, 2.5mm², 800 V
Product Description
Weidmuller Feedthrough Terminal Blocks Z Series
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Features and Benefits
• One, two, three and four tier available
• Tension clamp technology
• Available in different colours
Specifications
Product Description
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
• One, two, three and four tier available
• Tension clamp technology
• Available in different colours
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Double |
| Series | Z |
| Termination Method | Clamp |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 800 V |
| Pitch | 5.1mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
