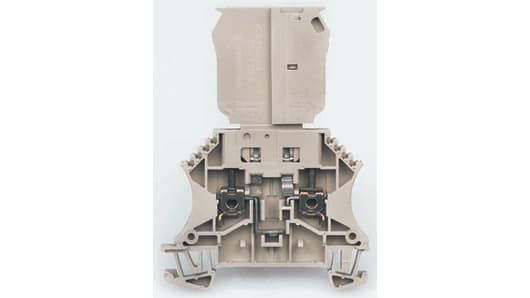

weidmuller 1763940000 Beige WTR Fused DIN Rail Terminal, Single level, 400 V
Product Description
Vertical Mount Terminals
Incorporating copper alloy rising cage screw clamp technology ensuring reliable mechanical and electrical connection
Compatible with 5x20mm fuses
Note
The voltage and current ratings on this page are due to VDE ratings.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Approvals
VDE
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Incorporating copper alloy rising cage screw clamp technology ensuring reliable mechanical and electrical connection
Compatible with 5x20mm fuses
Compatible with 5x20mm fuses
The voltage and current ratings on this page are due to VDE ratings.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
VDE
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| American Wire Gauge | 26 ? 12AWG |
| Series | WTR |
| Termination Method | Screw |
| Fused | Yes |
| Voltage Rating | 400 V |
| Current Rating | 6.3A |
| Pitch | 5mm |
