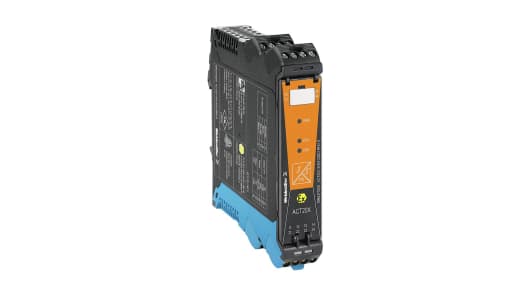

weidmuller 8965360000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, NAMUR Sensor, Switch Input, NPN Open Collector
Product Description
ACT20X HDI-SDO-S/2HDI-2SDO-S Signal Isolating Converter
The ACT20X HDI-SDO-S/2HDI-2SDO-S isolating converters are specially designed for recording NAMUR sensor signals and digital switching signals which originate from Ex zone 0. Negative-switching (NPN) transitor outputs are used to transmit the signals to applications in the safe zone.
DIN Rail mounting
22.5 mm width
Alarm contact in the event of a malfunction
1 or 2 channel options
Screw connection, removable terminal block
IP20 protection
Specifications
Product Description
The ACT20X HDI-SDO-S/2HDI-2SDO-S isolating converters are specially designed for recording NAMUR sensor signals and digital switching signals which originate from Ex zone 0. Negative-switching (NPN) transitor outputs are used to transmit the signals to applications in the safe zone.
DIN Rail mounting
22.5 mm width
Alarm contact in the event of a malfunction
1 or 2 channel options
Screw connection, removable terminal block
IP20 protection
22.5 mm width
Alarm contact in the event of a malfunction
1 or 2 channel options
Screw connection, removable terminal block
IP20 protection
Specifications
| Attribute | Value |
| Module Type | Isolation Amplifier |
| Input Signal Type | NAMUR Sensor, Switch |
| Output Signal Type | NPN Open Collector |
| Supply Voltage | 19.2 ? 31.2V |
| Input Range | 8V dc |
| Output Range | <2.5V dc |
| Hazardous Area Certification | IECEx |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 ? +60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Series | ACT20X |
| Termination | Screw |
