weidmuller 8965470000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, Current, RTD, Thermocouple Input, Current Output,
Product Description

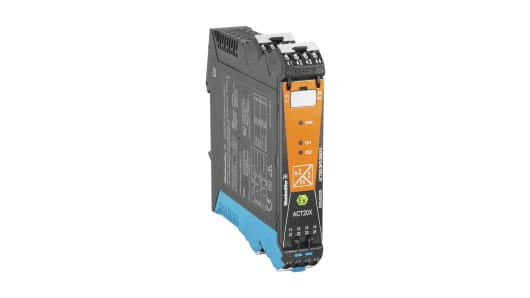

ACT20X HTI-SAO/2HTI-2SAO-S Signal Isolating Converter
The ACT20X HTI-SAO/2HTI-2SAO-S isolating converters record temperatures from PT100 sensors and thermocouples from Ex zone 0. Current loops from 0(4)-20 mA can also be connected on the input side and there are active and passive current loops availble from the safe zone, on the output side.
DIN Rail mounting
20.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
Specifications
Product Description
The ACT20X HTI-SAO/2HTI-2SAO-S isolating converters record temperatures from PT100 sensors and thermocouples from Ex zone 0. Current loops from 0(4)-20 mA can also be connected on the input side and there are active and passive current loops availble from the safe zone, on the output side.
DIN Rail mounting
20.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
20.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
Specifications
| Attribute | Value |
| Module Type | Temperature Converter |
| Input Signal Type | Current, RTD, Thermocouple |
| Output Signal Type | Current |
| Supply Voltage | 19.2 ? 31.2V |
| Input Range | 0 ? 20 mA, 4 ? 20mA |
| Output Range | 0 ? 23mA |
| Hazardous Area Certification | IECEx |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 ? +60°C |
| Series | ACT20X |
| Termination | Screw |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
