weidmuller 8965460000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, Current Input, Current Output, IECEx
weidmuller 8965460000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, Current Input, Current Output, IECEx Product Description ACT20X SAI-HAO/2SAI-2HAO-S Signal Isolating Converter ACT20X SAI-HAO/2SAI-2HAO-S current output isolating converters are suitable for controlling field devices in Ex areas, up to zone 0. The input/output HART-protocol transparent signal connection is implemented using 4-20...
weidmuller 8965460000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, Current Input, Current Output, IECEx
Product Description

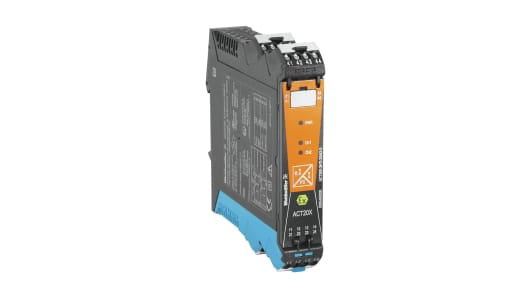

ACT20X SAI-HAO/2SAI-2HAO-S Signal Isolating Converter
ACT20X SAI-HAO/2SAI-2HAO-S current output isolating converters are suitable for controlling field devices in Ex areas, up to zone 0. The input/output HART-protocol transparent signal connection is implemented using 4-20 mA current loops.
DIN Rail mounting
22.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
Specifications
Product Description
ACT20X SAI-HAO/2SAI-2HAO-S current output isolating converters are suitable for controlling field devices in Ex areas, up to zone 0. The input/output HART-protocol transparent signal connection is implemented using 4-20 mA current loops.
DIN Rail mounting
22.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
22.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
Specifications
| Attribute | Value |
| Module Type | Signal Isolator |
| Input Signal Type | Current |
| Output Signal Type | Current |
| Supply Voltage | 19.2 ? 31.2V |
| Input Range | 4 ? 20mA |
| Output Range | 4 ? 20mA |
| Hazardous Area Certification | IECEx |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 ? +60°C |
| Maximum Operating Temperature | +60°C |
| Series | ACT20X |
| Minimum Operating Temperature | -20°C |
| Termination | Screw |
