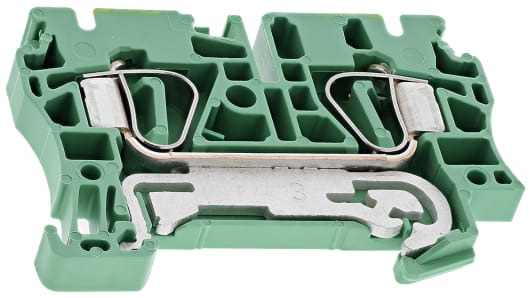

weidmuller 1632080000 2-Way ZPE4 DIN Rail Earth Terminal Block, 26 ? 10 AWG Wire, Clamp, Wemid Housing
Product Description
Earth Terminals
Designed to compliment the ’W’ screw series the screwless ’Z’ series DIN mounting terminals offers a top entry system that saves time and space. Quick & easy installation as the conductor is simply inserted by use of a clamping system. The top entry system means the conductor entry and clamp actuation access is from the same direction. Given a continuous temperature rating of 120°C, they are self-extinguishing to UL94V-0.
Note
Terminals ZPE 6, 10 and 16 only have CSA and UL Approval.
Approvals
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
Approvals
1-7
Specifications
Product Description
Designed to compliment the ’W’ screw series the screwless ’Z’ series DIN mounting terminals offers a top entry system that saves time and space. Quick & easy installation as the conductor is simply inserted by use of a clamping system. The top entry system means the conductor entry and clamp actuation access is from the same direction. Given a continuous temperature rating of 120°C, they are self-extinguishing to UL94V-0.
Terminals ZPE 6, 10 and 16 only have CSA and UL Approval.
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
1-7
Specifications
| Attribute | Value |
| Earth Block Type | ZPE4 DIN Rail |
| Wire Size | 26 ? 10 AWG |
| Colour | Green |
| Number of Ways | 2 |
| Termination Method | Clamp |
| Housing Material | Wemid |
| Voltage Rating | 800 V |
| Length | 64mm |
| Width | 6.1mm |
| Height | 43.5mm |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -50°C |
