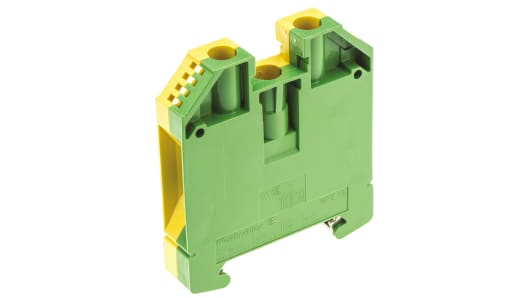

weidmuller 1010400000 2-Way WPE 16 Earth Terminal Block, 16mm², 14 ? 6 AWG Wire, Screw Down, Wemid Housing, ATEX
Product Description
Earth Terminals
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
Benefits
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
Typical Applications
Designed to give you the best conductivity in applications such as control panels and rails.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Earth Terminal Block, 56mm Height, 1kV Voltage Rating - W Series - 1010400000
Use this earth terminal block from Weidmuller to ensure you're on safe ground with your electrical system. Its Wemid housing provides effective insulation for protection against shocks and electrical damage. Thanks to its green and yellow colours, it's instantly recognisable as an earth connection. Compact dimensions of 56 (H) x 11.9 (W) x 62.5mm (D) make this a space-efficient choice that fits in tight areas. As it uses an easy screw-down termination method, you can turn your hand to it with ease.
Features & Benefits
• Accommodates wires ranging in size from 14 to 6AWG for broad compatibility
• Self-extinguishing in 10 seconds or less for safety in the event of a fire
• Broad operating temperature range between -50°C and +120°C for use in harsh industrial conditions
• Light weight of 57.82g to place minimal strain on your setup
Applications
• Automotive manufacturing
• Industrial automation
• Power supplies
How environmentally friendly is this item?
The block is free from halogen and cadmium to minimise the risk of environmental contamination. It also reduces health risks as it won't emit toxic fumes in the event of a fire.
Approvals
7777
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
• Protective insulation
• Screw mounted connection
Designed to give you the best conductivity in applications such as control panels and rails.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Use this earth terminal block from Weidmuller to ensure you're on safe ground with your electrical system. Its Wemid housing provides effective insulation for protection against shocks and electrical damage. Thanks to its green and yellow colours, it's instantly recognisable as an earth connection. Compact dimensions of 56 (H) x 11.9 (W) x 62.5mm (D) make this a space-efficient choice that fits in tight areas. As it uses an easy screw-down termination method, you can turn your hand to it with ease.
• Accommodates wires ranging in size from 14 to 6AWG for broad compatibility
• Self-extinguishing in 10 seconds or less for safety in the event of a fire
• Broad operating temperature range between -50°C and +120°C for use in harsh industrial conditions
• Light weight of 57.82g to place minimal strain on your setup
• Self-extinguishing in 10 seconds or less for safety in the event of a fire
• Broad operating temperature range between -50°C and +120°C for use in harsh industrial conditions
• Light weight of 57.82g to place minimal strain on your setup
• Automotive manufacturing
• Industrial automation
• Power supplies
• Industrial automation
• Power supplies
The block is free from halogen and cadmium to minimise the risk of environmental contamination. It also reduces health risks as it won't emit toxic fumes in the event of a fire.
7777
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Earth Block Type | WPE 16 |
| Wire Size | 14 ? 6 AWG |
| Cable CSA | 16mm² |
| Colour | Green/Yellow |
| Number of Ways | 2 |
| Termination Method | Screw Down |
| Housing Material | Wemid |
| Voltage Rating | 1 kV |
| Length | 56mm |
| Width | 11.9mm |
| Height | 63mm |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -50°C |
