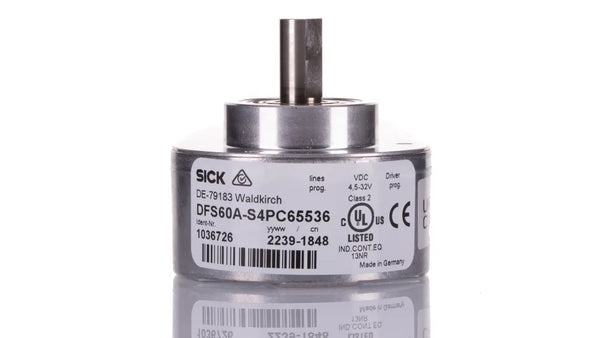

Sick - DFS60A-S4PC65536 INCREMENTAL ENCODER, 10MM SOLID SHAFT WITH FLAT, 36MM CLAMPING FLANGE, 65536 PPR, 4.5-32V HTL/TTL CONFIGURABLE, M12 8-PIN RADIAL CONNECTOR, IP65
Sick - DFS60A-S4PC65536 INCREMENTAL ENCODER, 10MM SOLID SHAFT WITH FLAT, 36MM CLAMPING FLANGE, 65536 PPR, 4.5-32V HTL/TTL CONFIGURABLE, M12 8-PIN RADIAL CONNECTOR, IP65 Product segment Encoders Product family group Incremental encoders Product family DFS60 Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Electrical interface 4.5 V ... 32 V, TTL/HTL...
Sick - DFS60A-S4PC65536 INCREMENTAL ENCODER, 10MM SOLID SHAFT WITH FLAT, 36MM CLAMPING FLANGE, 65536 PPR, 4.5-32V HTL/TTL CONFIGURABLE, M12 8-PIN RADIAL CONNECTOR, IP65
- Product segment
- Encoders
- Product family group
- Incremental encoders
- Product family
- DFS60
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mm |
| Electrical interface | 4.5 V ... 32 V, TTL/HTL programmable |
| Voltage area | 4.5 V ... 32 V |
| Connection type | Male connector, M12, 8-pin, radial |
| Pulses per revolution | 65,536 |
| Programmable/configurable | yes |
Product Details
| ETIM Group: | Sensors |
| ETIM Class: | Rotary encoder |
| Construction size: | - |
| Degree of protection (IP): | IP67 |
| Diameter axle: | 10 - 10mm |
| Impulse rate per cycle: | - - - |
| Material housing: | Aluminium |
| Max. pulses per revolution: | - |
| Number of revolutions: | - - - |
| Number of steps per revolution: | - - - |
| Programmable: | true |
| Standard for interfaces: | Other |
