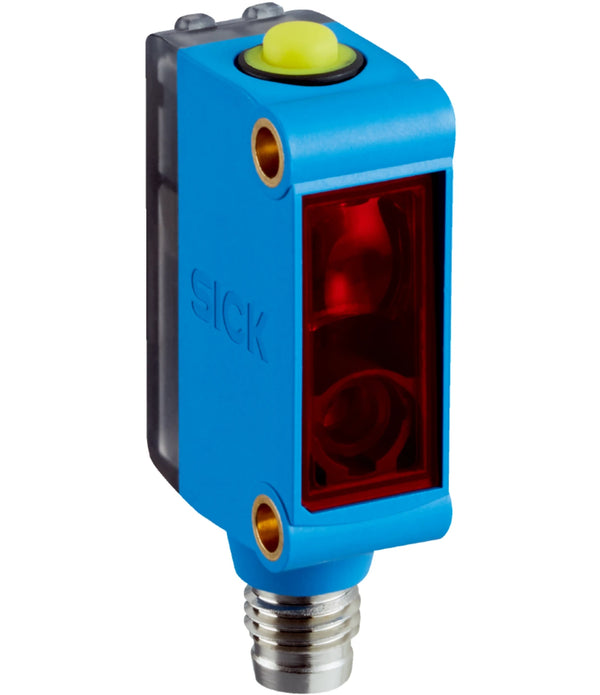

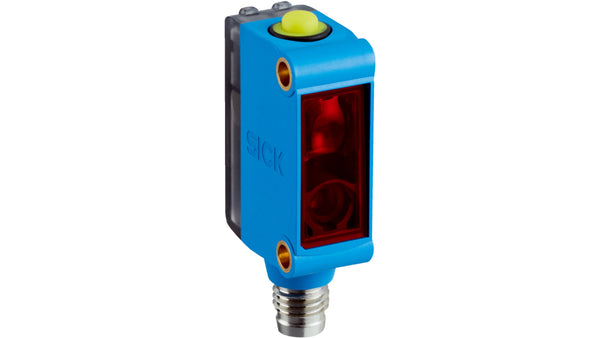

Sick - KTM-WP11172P CONTRAST SENSOR, 12.5MM RANGE, LED RGB, VERTICAL LIGHT SPOT, PNP, 0.2M CABLE TO M12 CONNECTOR
Sick - KTM-WP11172P CONTRAST SENSOR, 12.5MM RANGE, LED RGB, VERTICAL LIGHT SPOT, PNP, 0.2M CABLE TO M12 CONNECTOR Product segment Registration sensors Product family group Contrast sensors Product family KTM Prime Light source LED, RGB Switching output PNP Adjustment 2-point teach-in static/dynamic + proximity to mark Light spot direction Vertical Sensing distance...
Sick - KTM-WP11172P CONTRAST SENSOR, 12.5MM RANGE, LED RGB, VERTICAL LIGHT SPOT, PNP, 0.2M CABLE TO M12 CONNECTOR
- Product segment
- Registration sensors
- Product family group
- Contrast sensors
- Product family
- KTM Prime
| Light source | LED, RGB |
| Switching output | PNP |
| Adjustment | 2-point teach-in static/dynamic + proximity to mark |
| Light spot direction | Vertical |
| Sensing distance | 12.5 mm |
| Connection type to the sensor | Cable with M12 male connector, 4-pin |
| Communication interface | - |
| Light spot size | 1.5 mm x 6.5 mm |
Datasheets and Manuals
Product Information
| Alternative Part Number: | 1082138 |
| Manufacturer: | Sick |
| Pricing Unit: | Each |
| Weight: | 0.022 kg (each) |
| Tariff code: | 85365019 |
| Generic code: | SICK7 |
Product Details
| ETIM Group: | Sensors |
| ETIM Class: | Contrast sensor |
| Ambient temperature: | - - - |
| Analogue output 0 mA ... 20 mA: | - |
| Analogue output 0 V ... 10 V: | - |
| Analogue output -10 V ... +10 V: | - |
| Analogue output 4 mA ... 20 mA: | - |
| AWG-number: | - |
| Construction type housing: | Special construction |
| Degree of protection (IP): | IP67 |
| Diameter sensor: | - |
| Height of sensor: | 31.5mm |
| Length of sensor: | 21mm |
| Light dot: | - |
| Material housing: | Plastic |
| Material of optical surface: | Plastic |
| Max. output current: | - |
| No-load current: | 50mA |
| Nominal operating distance: | - |
| Number of contact energized outputs with signalling function: | - |
| Number of semiconductor outputs with signalling function: | - |
| Operation agent-safety class: | Safety class 3 |
| Rated control supply voltage Us at AC 50HZ: | 12 - 24V |
| Rated control supply voltage Us at AC 60HZ: | - - - |
| Rated control supply voltage Us at DC: | - - - |
| Switching frequency: | 15000Hz |
| Type of electric connection: | Connector M12 |
| Type of switching output: | PNP |
| Width sensor: | 12mm |
| With blanking function: | - |
| With exchange lens: | - |
| With fibre optics connection: | - |
| With time function: | - |
