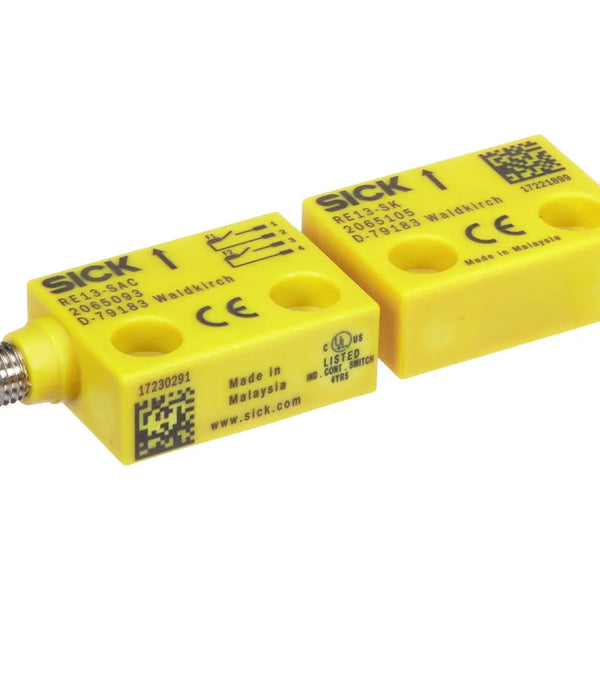

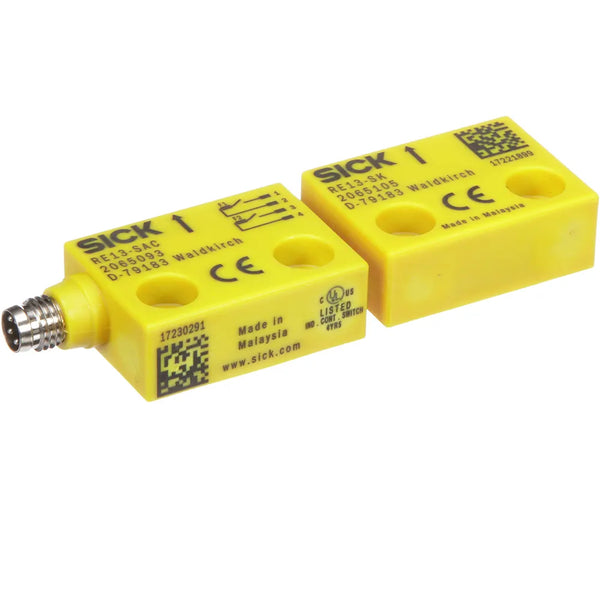

Sick - RE13-SAC MAGNETIC SAFETY SWITCH WITH ACTUATOR, 2NO, M8 4 PIN CONNECTOR, SAFE SERIES CONNECTION WITH FLEXI LOOP
SICK Magnetic Non-Contact Safety Switch
This versatile SICK magnetic safety switch is equipped with NO contacts which are actuated with coded magnetic actuators. These safety system switches are ideal for use in areas where there may be a high level of contamination, these switches are easy to clean helping to maintain hygiene standards.
Ideal for applications with space restrictions these safety switches have a high tolerance for door misalignment. Typically, you'll find these types of safety switches where precise guidance of a safety door isn't always possible. Applications include the monitoring of automation process safety doors and removable guards. The non-contact principle of these sensors ensures a long service life.
Magnetic Non-Contact Safety Switch Features
- Response range from 7-9 mm
- Switching distance 20 mm (off), 7 mm (on)
- Supply voltage 30 VDC
- 2 NO Safety contacts
- Magnetic sensor principle
- Approach directions ? 3, High tolerances for door misalignment
- IP67 protection rating
- Built-in LED response indicator, M8 connector
- Performance level up to PL e / Cat. 4 (EN ISO 13849)
- Glass-fibre reinforced PPS rectangular housing
- Dimensions D x L x W ? 13 x 36 x 26.2 mm
Datasheets and Manuals
Product Information
| Alternative Part Number: | 1059503 |
| Manufacturer: | Sick |
| Pricing Unit: | Each |
| Weight: | 0.059 kg (each) |
| Tariff code: | 85365019 |
| Generic code: | SICK6 |
Product Details
| ETIM Group: | Sensors |
| ETIM Class: | Magnetic proximity switch |
| Ambient temperature: | - - - |
| Construction type housing: | Cuboid |
| Cross-/short circuit identification possible: | - |
| Diameter sensor: | - |
| Height of sensor: | - |
| Length of sensor: | - |
| Max. output current at protected output: | - |
| Min. output current: | - |
| Number of contact energized outputs with signalling function: | - |
| Number of protected contact energized outputs: | - |
| Number of protected semiconductor outputs: | - |
| Number of semiconductor outputs with signalling function: | - |
| Protected switch distance OFF: | 20mm |
| Protected switch distance ON: | 7mm |
| Rated supply voltage at AC 50 Hz: | - - - |
| Rated supply voltage at AC 60 Hz: | - - - |
| Rated supply voltage at DC: | - - - |
| Suitable for safety functions: | - |
| Switching distance: | - |
| Type of electric connection: | Connector M8 |
| Width sensor: | - |
| With monitoring function downstream switching devices: | - |
| With status indication: | - |
