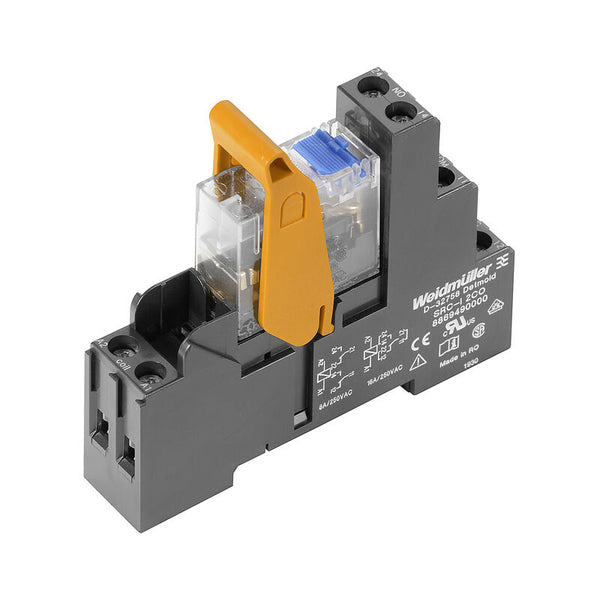

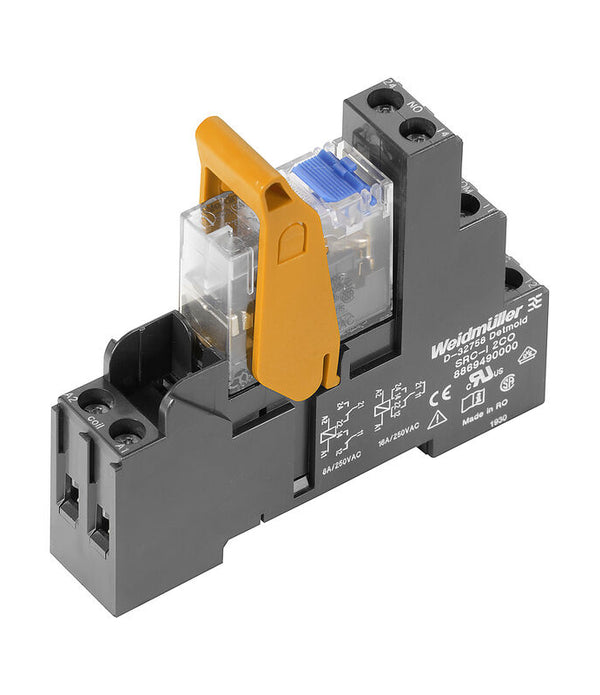

RCIKIT 24VDC 2CO LD/PBRCIKIT 24VDC 2CO LD/P

SKU: 8881610000
Brand: weidmuller

Availability: In Stock

RIDERSERIES RCI, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Screw connection, Test button available: Yes General ordering data Version RIDERSERIES RCI, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous...

RIDERSERIES RCI, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Screw connection, Test button available: Yes

General ordering data

Version

RIDERSERIES RCI, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Screw connection, Test button available: Yes

Order No.

8881610000

Type

RCIKIT 24VDC 2CO LD/PB

GTIN (EAN)

4032248631865

Qty.

10 items

Delivery status

This article will no longer be available in the future.

Last order date

31.10.2024

Alternative product

3137510000

Dimensions and weights

Depth

70.2 mm

Depth (inches)

2.764 inch

Height

77 mm

Height (inches)

3.031 inch

Width

15.8 mm

Width (inches)

0.622 inch

Net weight

56.4 g

Temperatures

Storage temperature

-40 °C...70 °C

Ambient temperature

-40 °C…70 °C

Humidity

40 °C / 93 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status

Compliant without exemption

REACH SVHC

No SVHC above 0.1 wt%

Control side

Rated control voltage

24 V DC

Rated current DC

31.6 mA

Power rating

761 mW

Coil resistance

1440 Ω ± 10 %

Status indicator

Green LED

Protective circuit

Free-wheeling diode

Load side

Rated switching voltage

250 V AC

Continuous current

8 A

Max. switching frequency at rated load

0.1 Hz

Max. switching voltage, AC

250 V

Min. switching power

1 mA @ 24 V
10 mA @ 12 V
100 mA @ 5 V

Inrush current

15 A / 4 s

AC switching capacity (resistive), max.

2000 VA

DC switching capacity (resistive), max.

192 W @ 24 V

Switch-on delay

≤ 10 ms

Switch-off delay

≤ 6 ms

Contact type

2 CO contact (AgNi)

Mechanical service life

AC coil 5 x 10⁶ switching cycles
DC coil 10 x 10⁶ switching cycles

General data

Mounting rail

TS 35

Test button available

Yes

Version of test button

lockable, just when removing the detend lock
Momentary test button

Mechanical switch position indicator

Yes

Colour

black

Insulation coordination

Rated voltage

250 V

Pollution severity

Surge voltage category

III

Insulating material group

IIIa

Clearance and creepage distances for control side - load side

≥ 8 mm

Dielectric strength for control side - load side

5 kV_eff / 1min

Dielectric strength of neighbouring contacts

2.5 kV_eff / 1 Min.

Dielectric strength of open contact

1 kV_eff / 1 min

Impulse withstand voltage

5 kV (1.2/50 µs)

Protection degree

IP20

Further details of approvals / standards

Certificate no. (CSA) relay

249409-2426937

Certificate no. (CSA) base

249409-2295474

Certificate No. (DNV)

TAA000011A

Certificate no. (cURus) base

E223759

Connection data

Wire connection method

Screw connection

Stripping length, rated connection

8 mm

Tightening torque, min.

0.5 Nm

Tightening torque, max.

0.7 Nm

Clamping range, rated connection

2.5 mm²

Clamping range, min.

1 mm²

Clamping range, max.

2.5 mm²

Wire cross-section, solid, min.

1 mm²

Wire cross-section, solid, max.

2.5 mm²

Wire connection cross section, finely stranded, min.

1 mm²

Wire connection cross section, finely stranded, max.

2.5 mm²

Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.

1 mm²

Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.

2.5 mm²

Conductor cross-section, flexible, AEH (DIN 46228-1), min.

1 mm²

Conductor cross-section, flexible, AEH (DIN 46228-1), max.

2.5 mm²

Wire connection cross section, finely stranded, two clampable wires, min.

1 mm²

Wire cross-section, finely stranded, two clampable wires, max.

1.5 mm²

Blade size

size PZ1

Important note

Product information

IP20 without connected conductor at complete opened clamping yoke connection.

Classifications

ETIM 8.0

EC001437

ETIM 9.0

EC001437

ETIM 10.0

EC001437

ECLASS 14.0

27-37-16-01

ECLASS 15.0

27-37-16-01
