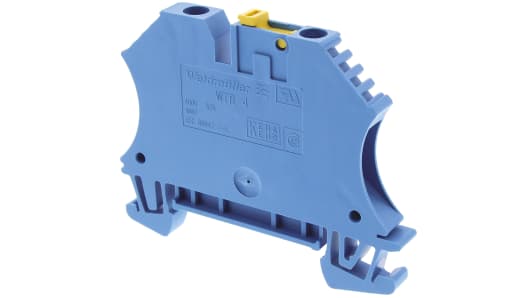

weidmuller 7910190000 Blue WTR Disconnect Terminal Block, Single level, 4mm², 400 V
weidmuller 7910190000 Blue WTR Disconnect Terminal Block, Single level, 4mm², 400 V Product Description Disconnect Versatile and extensive test-disconnect terminal blocks are made from hardened steel for mechanical strength and tinned copper for optimum conductivity. The screwdriver actuated lever can be removed to prevent unauthorised reconnection of the circuit. Features...
weidmuller 7910190000 Blue WTR Disconnect Terminal Block, Single level, 4mm², 400 V
Product Description
Disconnect
Versatile and extensive test-disconnect terminal blocks are made from hardened steel for mechanical strength and tinned copper for optimum conductivity. The screwdriver actuated lever can be removed to prevent unauthorised reconnection of the circuit.
Features and Benefits
Pluggable cross connect Screw connection Clamping yoke technology Flammability rating UL94V 0
Note
The voltage and current ratings are to VDE ratings
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Approvals
VDE
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Versatile and extensive test-disconnect terminal blocks are made from hardened steel for mechanical strength and tinned copper for optimum conductivity. The screwdriver actuated lever can be removed to prevent unauthorised reconnection of the circuit.
Pluggable cross connect Screw connection Clamping yoke technology Flammability rating UL94V 0
The voltage and current ratings are to VDE ratings
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
VDE
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Blue |
| Number of Levels | Single |
| Series | WTR |
| American Wire Gauge | 22 ? 10AWG |
| Termination Method | Screw |
| Cable CSA | 4mm² |
| Current Rating | 32A |
| Voltage Rating | 400 V |
