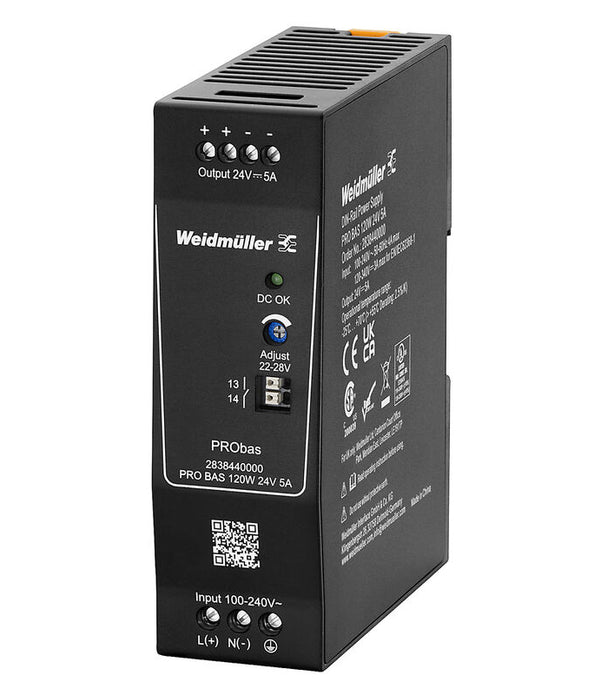

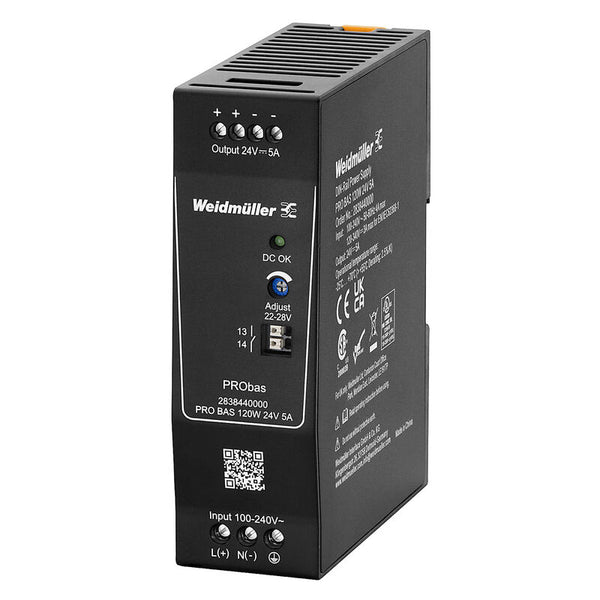

PRO BAS 120W 24V 5A

PRO BAS 120W 24V 5A

    • SKU: 2838440000
    • Brand: weidmuller
    • Availability: In Stock

    Power supply, switch-mode power supply unit, 24 V Item No.2838440000 Approvals Approvals ROHS Conform  UL File Number Search UL Website Certificate no. (cULus) E258476  General ordering data Version Power supply, switch-mode power supply unit, 24 V  Order No. 2838440000  Type PRO BAS 120W 24V 5A  GTIN (EAN) 4064675444138  Qty. 1 items...



    Add to quote

    Power supply, switch-mode power supply unit, 24 V

    Item No.2838440000

    Approvals

    Approvals
    ROHS
    Conform
    UL File Number Search
    UL Website
    Certificate no. (cULus)
    E258476

    General ordering data

    Version
    Power supply, switch-mode power supply unit, 24 V
    Order No.
    2838440000
    Type
    PRO BAS 120W 24V 5A
    GTIN (EAN)
    4064675444138
    Qty.
    1 items

    Dimensions and weights

    Depth
    100 mm
    Depth (inches)
    3.937 inch
    Height
    130 mm
    Height (inches)
    5.118 inch
    Width
    40 mm
    Width (inches)
    1.575 inch
    Net weight
    490 g

    Temperatures

    Storage temperature
    -40 °C...85 °C
    Operating temperature
    -25 °C...70 °C
    Start-up
    ≥ -40 °C
    Humidity
    5…95 % rel. humidity, no condensation

    Environmental Product Compliance

    RoHS Compliance Status
    Compliant with exemption
    RoHS Exemption (if applicable/known)
    6c, 7a, 7cI
    REACH SVHC
    Lead 7439-92-1
    Lead monoxide 1317-36-8
    SCIP
    d62541f7-8058-4336-b693-7303c8b40800

    Input

    AC input voltage range
    85...264 V AC (derating at 100 V AC)
    Connection system
    Screw connection
    Current consumption in relation to the input voltage
    • Voltage type:
      AC
    • Input voltage:
      230 V
    • Input current:
      1.13 A
    • Voltage type:
      AC
    • Input voltage:
      115 V
    • Input current:
      2.02 A
    • Voltage type:
      DC
    • Input voltage:
      120 V
    • Input current:
      1.11 A
    DC input voltage range
    110...370 V DC (derating at <120 V DC)
    Frequency range AC
    45…65 Hz
    Input fuse (internal)
    Yes
    Inrush current
    40 A @ 230 V AC, 25 °C
    Nominal power consumption
    133.33 VA
    Rated input voltage
    110...240 V AC / 120...340 V DC
    Recommended back-up fuse
    4 A / DI, safety fuse
    6 A, Char. B, circuit breaker
    2...4 A, Char. C circuit breaker
    Wire connection method
    Screw connection

    Output

    Capacitive load
    5.5mF
    Connection system
    Screw connection
    Continuous output current @ UNominal
    5 A @ 55 °C
    3.125 A @ 70°C
    Mains failure bridge-over time
    • Mains failure bridge-over time, min.:
      20 ms
    • Input voltage type:
      AC
    • Input voltage:
      120 V
    • Output current:
      5 A
    • Output voltage:
      24 V
    • Mains failure bridge-over time, min.:
      60 ms
    • Input voltage type:
      AC
    • Input voltage:
      230 V
    • Output current:
      5 A
    • Output voltage:
      24 V
    Nominal output current for Unom
    5 A @ 55 °C
    Output current, max.
    5 A
    Output power
    120 W
    Output voltage, max.
    28 V
    Output voltage, min.
    22 V
    Output voltage, note
    adjustable via potentiometer
    Overload protection
    Yes
    Parallel connection option
    yes, max. 3
    Protection against inverse voltage
    Yes
    Rated output voltage
    24 V DC
    Residual ripple, breaking spikes
    ≤ 50 mVpp @ full load
    Wire connection method
    Screw connection

    General data

    AC failure bridging time @ Inom
    > 80 ms @ 230 V AC / > 20 ms @ 115 V AC
    Building height
    130 mm
    Building Width
    40 mm
    Degree of efficiency
    90% @ 230 V AC
    Earth leakage current, max.
    3.5 mA
    Housing version
    Plastic, protective insulation
    Humidity
    5…95 % rel. humidity, no condensation
    Mounting position, installation notice
    Horizontal on TS35 mounting rail. 50 mm of clearance at top &amp; bottom for air circ. Can mount side by side with no space in between.
    Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring subassemblies.
    50 mm clearance at top and bottom for free air circulation, mountable side by side without clearance
    On TS 35 mounting rail, 50 mm clearance above and below for free air supply.
    MTBF
    • According to Standard:
      SN 29500
    • Operating time (hours), min.:
      600,000 h
    • Ambient temperature:
      40 °C
    • Input voltage:
      230 V
    • Output power:
      120 W
    • Duty cycle:
      100 %
    Power factor (approx.)
    0.5 @ 120 V AC
    0.51 @ 230 V AC
    Power loss, idling
    1.5 W
    Power loss, nominal load
    14.5 W
    Protection against over-heating
    Yes
    Protection degree
    IP20
    Short-circuit protection
    Yes
    Status indication
    Green LED

    EMC / shock / vibration

    Interference immunity test acc. to
    EN 61000-4-2 (ESD)
    EN 61000-4-3 (RS)
    IEC 61000-6-4
    EN 61000-4-4 (burst)
    EN 61000-4-5 (surge)
    EN 61000-4-6 (conducted)
    EN61000-4-8 (Fields)
    EN 61000-4-11 (Dips)
    IEC 61000-6-1
    IEC 61000-6-2
    IEC 61000-6-3
    Noise emission in accordance with EN55032
    Class B
    Shock resistance IEC 60068-2-27
    30 g in all directions
    Vibration resistance IEC 60068-2-6
    0.7 g according to EN 50178

    Insulation coordination

    Insulation voltage input / earth
    3.5 kV
    Insulation voltage output / earth
    0.5 kV
    Insulation voltage, input/output
    3.5 kV
    Pollution severity
    2
    Protection class
    I, with PE connection

    Electrical safety (applied standards)

    Safety extra-low voltage
    SELV acc. to IEC 61010-1
    PELV acc. to IEC 61010-2-201
    Safety transformers for switch-mode power supplies
    According to EN 61558-2-16

    Connection data (input)

    Conductor cross-section, AWG/kcmil , max.
    12 AWG
    Conductor cross-section, AWG/kcmil , min.
    26 AWG
    Conductor cross-section, flexible , min.
    0.5 mm²
    Conductor cross-section, rigid , max.
    6 mm²
    Conductor cross-section, rigid , min.
    0.5 mm²
    Connection system
    Screw connection
    Number of terminals
    3 for L/N/PE
    Screwdriver blade
    0.6 x 3.5
    Tightening torque, max.
    0.6 Nm
    Tightening torque, min.
    0.5 Nm
    Wire connection cross section, flexible (input), max.
    6 mm²

    Connection data (output)

    Conductor cross-section, AWG/kcmil , max.
    12 AWG
    Conductor cross-section, AWG/kcmil , min.
    26 AWG
    Conductor cross-section, flexible , max.
    6 mm²
    Conductor cross-section, flexible , min.
    0.5 mm²
    Conductor cross-section, rigid , max.
    6 mm²
    Conductor cross-section, rigid , min.
    0.5 mm²
    Connection system
    Screw connection
    Number of terminals
    4 (++ / --)
    Screwdriver blade
    0.6 x 3.5
    Tightening torque, max.
    0.6 Nm
    Tightening torque, min.
    0.5 Nm

    Signalling

    Contact load (NO contact)
    max. 30 V DC / 1 A
    Floating contact
    Yes
    LED green
    Operating voltage OK
    Status indication
    Green LED
    Trigger voltage, LED
    Uout > 0.9 x Unominal min
    Trigger voltage, relay
    Uout > 0.9 x Unominal min

    Classifications

    ETIM 8.0
    EC002540
    ETIM 9.0
    EC002540
    ETIM 10.0
    EC002540
    ECLASS 14.0
    27-04-07-01
    ECLASS 15.0
    27-04-07-01

    You can use this tab for adding shipping details, return policies and information or measurements etc.
