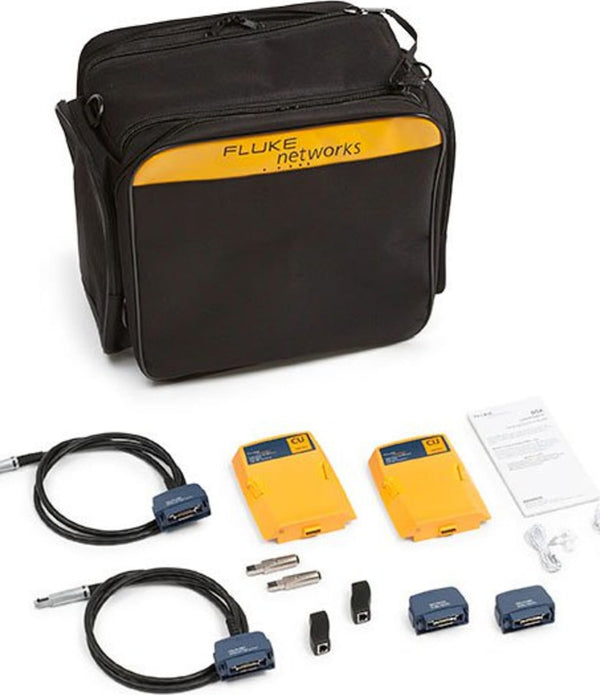

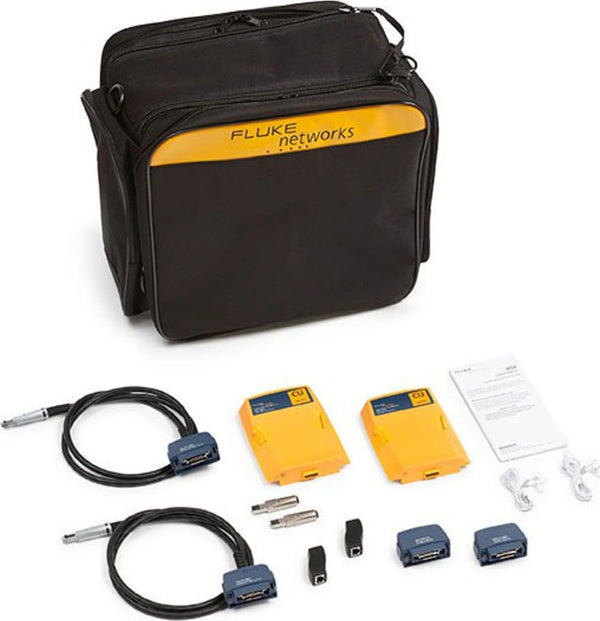

Fluke Networks DSX-ADD 1 GHz DSX Cable Analyzer Modules Add-on Kit

₦19,379,250.00

SKU: DSX-ADD
Brand: Fluke

Availability: In Stock

1 GHZ DSX CABLE ANALYZER MODULES ADD ON KIT DSX-ADD Versiv DSX Add Kit Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process ProjX management system eases tasks from initial set-up of a job to system acceptance. It eliminates...

1 GHZ DSX CABLE ANALYZER MODULES ADD ON KIT

DSX-ADD Versiv DSX Add Kit
Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
ProjX management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time.
Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels.
LinkWare management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with Dedicated Diagnostics, a simple test that locates the problem
Performance:
Ten second Cat 6A test time contributes to the fastest way to gain certification
Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
Manage up to 12,000 test results with full graphics
Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
1 billion links reported on LinkWare management software
Standards:
Compliant with proposed ISO (IEC WG9 Standard IEC61935-1) Level V accuracy requirements to 1000 MHz
Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) – IEC61935-1 & 11801-1-4, IEEE 802.3af, IEEE 802.3at, ANSI/TIA/EIA-568-C.2
Next generation balance drafts – IEEE 802.3, TIA TR42.7

View Product Details

Manufacturer Specs

Cable Types
Shielded and unshielded pair LAN cabling	TIA Category 3, 4, 5, 5e, 6, 6A: 100 ? ISO/IEC Class C, D, E, EA, F, and FA: 100 ? and 120 ?
Standard Link Interface Adapters
Permanent link adapters	Plug type: shielded RJ45 Optional Plug type: Tera
Channel Adapters	Jack type: shielded RJ45 Optional Jack type: Tera
Test Standards
TIA	Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
ISO/IEC	Class C and D, E, EA, F, FA certification per ISO/IEC 11801:2002 and amendments
Maximum frequency	1200 MHz
General Specifications
Speed of Autotest	Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests)	Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection	Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display	5.7 in LCD display with a projected capacitance touchscreen
Case	High impact plastic with show absorbing overmold
Dimensions	Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight	Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote	Lithium ion battery pack, 7.2 V
Typical battery life	8 hours
Charge time	Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
Languages supported	English, French, German, Spanish, Portuguese, Italian, Japanese, and Simplified Chinese
Calibration	Service center calibration period is 1 year
Environment Specifications
Operating Temperature	32°F to 113°F (0°C to 45°C)
Storage Temperature	-4°F to +122°F (-20° C to +50°C)
Operating relative humidity	0 % to 90 %, 32°F to 95 °F (0°C to 35°C) 0 % to 70 %, 95°F to 113 °F (35°C to 45°C)
Vibration	Random, 2 g, 5 Hz-500 Hz
Shock	1 m drop test with and without module and adapter
Safety	CSA 22.2 No. 61010, IEC 61010-1 2nd Edition + Amendments 1, 2
Operating altitude	13,123 ft (4,000 m)
EMC	EN 61326-1
Performance Specifications
Category 6A/Class EA test modes (or lower link categories)	DSX-5000 CableAnalyzer modules exceed with Level IIIe requirements of TIA 1152 and Level IV of IEC 61935-1.
Class FA test modes	DSX-5000 CableAnalyzer modules exceed Level V requirements as in the draft 4th edition of IEC 61935-1.
Delay Skew
Range	0 ns to 100 ns
Resolution	1 ns
Accuracy	± 10 ns
DC Loop Resistance Test
Range	0 ? to 540 ?
Resolution	0.1 ?
Accuracy	± (1 ? + 1 %)
Overload recovery time	Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.
