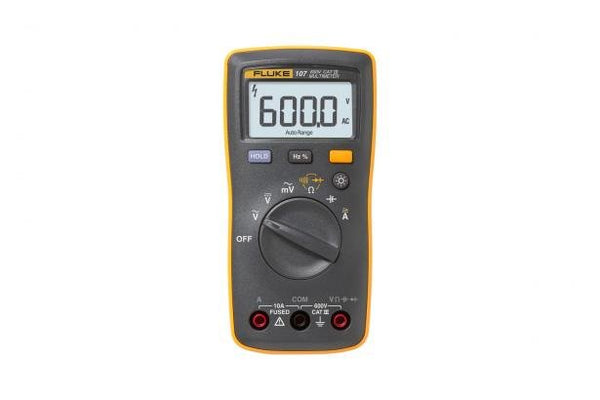

Fluke 107 Small Digital Multimeter CAT III 600 V

₦0.00

SKU:
Brand: Fluke

Availability: In Stock

Features of fluke 107 pocket digital multimeter Enabled with current and voltage measurement functions, in a compact size Measures resistance & continuity to check for broken wires Data hold and backlit display to keep you working safe and fast Ergonomic and rugged Comfortable grip, only weighs 200g and easy to...

Features of fluke 107 pocket digital multimeter

Enabled with current and voltage measurement functions, in a compact size
Measures resistance & continuity to check for broken wires
Data hold and backlit display to keep you working safe and fast
Ergonomic and rugged
Comfortable grip, only weighs 200g and easy to carry
Rugged enclosure and 3.3' (1 m) drop test
Full-parameter automatic range test, which is convenient and quick to test; at the same time, it reduces the number of rotations of the wave plate and prolongs the life of the instrument
6000-word large screen LCD backlight display
Battery powered, automatic power save mode
Data retention feature makes it easier to read measurement results
Compliant with IEC61010-1 CATIII 600V overvoltage protection safety standard

Complete test functions

AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Capacitance measurement
Diode measurement
Frequency and duty cycle test and other functions to meet basic electrical maintenance, electrical measurement, and electronic measurement applications

Applications of fluke 107 multimeter

Basic electrical maintenance
Electrical measurement
Electronic measurement

Fluke 107 ESP Digital Multimeter Specifications

Electrical Specifications
AC Volts (40 to 500 Hz)	Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 1.0% + 3
DC Volts	Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 0.5% + 3
AC Millivolts	Range: 600 mV Resolution: 0.1 mV Accuracy: 3.0% + 3
Diode Test	Range: 2 V Resolution: 0.001 V Accuracy: 10%
Resistance (Ohms)	Range: 400 Ω, 4, 40, 400 kΩ, 4, 40 MΩ Resolution: 0.1 Ω, 0.001, 0.01, 0.1 kΩ, 0.001, 0.01 MΩ Accuracy: 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 1.5% + 3
Capacitance	Range: 50, 500 nF, 5, 50, 500, 1000 µF Resolution: 0.01, 0.1 nF, 0.001, 0.01, 0.1, 1µF Accuracy: 2% + 5, 2% + 5, 5% + 5, 5% + 5, 5% + 5, 5% + 5
Frequency (10 Hz to 100 kHz)	Range: 50, 500 Hz, 5, 50, 100 kHz Resolution: 0.01, 0.1 Hz, 0.001, 0.01, 0.1 kHz Accuracy: 0.1% + 3
Duty Cycle	Range: 0.1 to 99.9% Resolution: 0.1% Accuracy: 1% typical
AC Current (40 to 200 Hz)	Range: 4, 10 A Resolution: 0.001, 0.01 A Accuracy: 1.5% + 3
DC Current (40 to 200 Hz)	Range: 4, 10 A Resolution: 0.001, 0.01 A Accuracy: 1.5% + 3
Backlight	Accuracy: Yes
AC Volts	Overload protection: 600 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >60 dB at DC, 50 or 60 Hz
AC Millivolts	Overload protection: 600 mV Input impedance (nominal): >1 M, <100 pF Common mode rejection ratio: >80 dB at 50 or 60 Hz
DC Volts	Overload protection: 600 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >100 dB at DC, 50 or 60 Hz Normal mode rejection ratio: >45 dB at 50 or 60 Hz
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground	600 V
Display (LCD)	6000 counts, updates 3/sec
Battery Type	2 x AAA Batteries, NEDA 24A, IEC LR03
Battery Life	200 hours minimum
Temperature	Operating: 32 to 104°F (0 to 40°C) Storage: -22 to 140°F (-30 to 60°C)
Operating Humidity: Non-condensing when <50°F (<10°C)	≤90% at 50 to 86°F (10 to 30°C) ≤75% at 50 to 104°F (30 to 40°C)
Operating Humidity, 40 MΩ Range	≤80% at 50 to 86°F (10 to 30°C) ≤70% at 50 to 104°F (30 to 40°C)
Altitude	Operating: 6561.7' (2000 m) Storage: 39,370.1' (12,000 m)
Temperature Coefficient	0.1 X (specified accuracy)/°C (<18 or >28°C)
Fuse Protection for Current Inputs	11 A, 1000 V fast fuse
Dimensions	5.6 x 2.7 x 1.1" (142 x 69 x 28 mm)
Weight	0.44 lb (200 g)
IP Rating	IEC 60529: IP40
Safety	IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment	IEC 61326-1: portable
