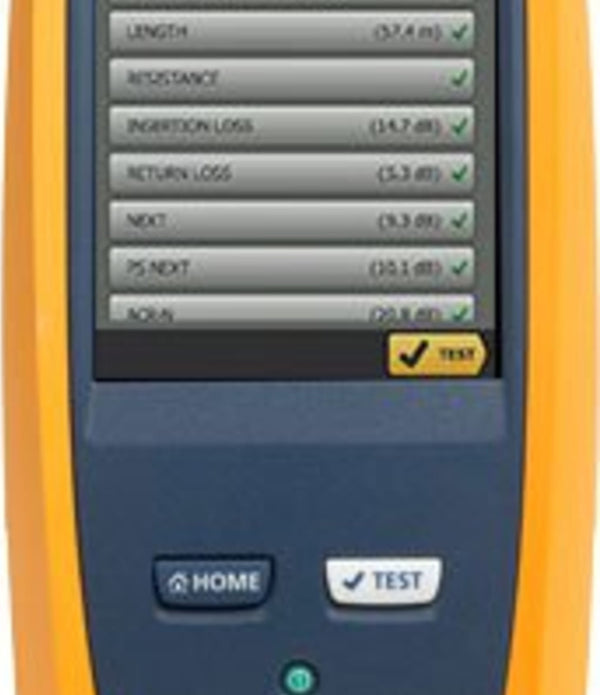

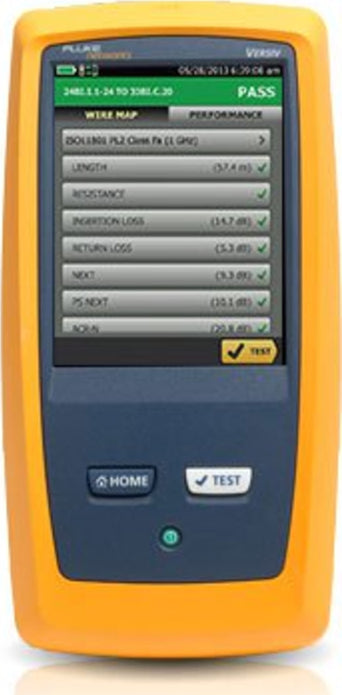

Fluke Networks DSX-8000-MOD 2 GHz DSX Cable Analyzer Module Replacement 1 Unit

₦13,427,100.00

SKU: DSX-8000-MOD
Brand: Fluke

Availability: In Stock

Fluke Networks DSX-8000-MOD 2 GHz DSX Module Replacement Unit, 1 unit 2 GHz DSX CableAnalyzer Module Replacement 1 Unit Accelerates every step of the copper certification process Versiv™ modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection Unmatched speed for Cat 6A, 8, Class FA,...

Fluke Networks DSX-8000-MOD 2 GHz DSX Module Replacement Unit, 1 unit

2 GHz DSX CableAnalyzer Module Replacement 1 Unit
Accelerates every step of the copper certification process
Versiv™ modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
ProjX™ system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
Taptive™ user interface simplifies set-up, and eliminates errors
Analyze test results and create professional test reports using LinkWare™ management software
Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
Intertek Verified to TIA Level 2G – the most stringent accuracy requirement
Endorsed by cabling vendors worldwide
Built in Alien Crosstalk testing capability
Compatible with Linkware™ Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare™ PC Cable Test Management Software

View Product Details

Manufacturer Specs

Fluke Networks DSX-8000 CableAnalyzer Series Specifications
Cable Types
Shielded and unshielded pair LAN cabling	TIA Category 3, 4, 5, 5e, 6, 6A: 100 ? ISO/IEC Class C, D, E, E_A, F, and F_A: 100 ? and 120 ?
Standard Link Interface Adapters
Permanent link adapters	Plug type: shielded RJ45 Optional Plug type : Tera (for DSX-5000 only, DSX-8000 version available summer 2017)
Channel Adapters	Jack type: shielded RJ45 Optional Jack type: Tera (for DSX-5000 only, DSX-8000 version available summer 2017)
Test Standards
TIA	Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
ISO/IEC	Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments
Maximum frequency	DSX-8000: 2000 MHz
General Specifications
Speed of Autotest	Full 2-way Autotest of Category 5e or 6/Class D or E: 7 seconds. Full 2-way Autotest of Category 6A/Class E_A: 8 seconds. Full 2-way Autotest of Category 8: 16 seconds
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests)	Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection	Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display	5.7 in LCD display with a projected capacitance touchscreen
Case	High impact plastic with show absorbing overmold
Dimensions	Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight	Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote	Lithium ion battery pack, 7.2 V
Typical battery life	8 hours
Charge time*	Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
Languages supported	English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration	Service center calibration period is 1 year
Environment Specifications
Operating Temperature	32°F to 113°F (0°C to 45°C)
Storage Temperature	-4°F to +122°F (-20° C to +50°C)
Operating relative humidity	0 % to 90 %, 32°F to 95 °F (0°C to 35°C) 0 % to 70 %, 95°F to 113 °F (35°C to 45°C)
Vibration	Random, 2 g, 5 Hz-500 Hz
Shock	1 m drop test with and without module and adapter
Safety	CSA 22.2 No. 61010, IEC 61010-1 2nd Edition + Amendments 1, 2
Operating altitude	13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter
EMC	EN 61326-1
Performance Specifications **
Category 8 test modes (or lower link categories)	ANSI/TIA-1152 Level 2G
Class I/II test modes	Proposed standard IEC 61935-1 Ed. 5 Level VI
Length of Twisted Pair Cabling¹
	Without Remote	With Remote
Range	800 m (2600 ft)	150 m (490 ft)
Resolution	0.1 m or 1 ft	0.1 m or 1 ft
Accuracy ±	(0.3 m + 2 %); 0 m to 150 m ± (0.3 m + 4 %); 150 m to 800 m	± (0.3 m + 2 %)
Propagation Delay
	Without Remote	With Remote
Range	4000 ns	750 ns
Resolution	1 ns	1 ns
Accuracy	± (2 ns + 2 %); 0 ns to 750 ns ± (2 ns + 4 %); 750 ns to 4000 ns	± (2 ns + 2 %)
Delay Skew
Range	0 ns to 100 ns
Resolution	1 ns
Accuracy	± 10 ns
DC Loop Resistance Test
Range	0 ? to 540 ?
Resolution	0.1 ?
Accuracy	± (1 ? + 1 %)
Overload recovery time	Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.
